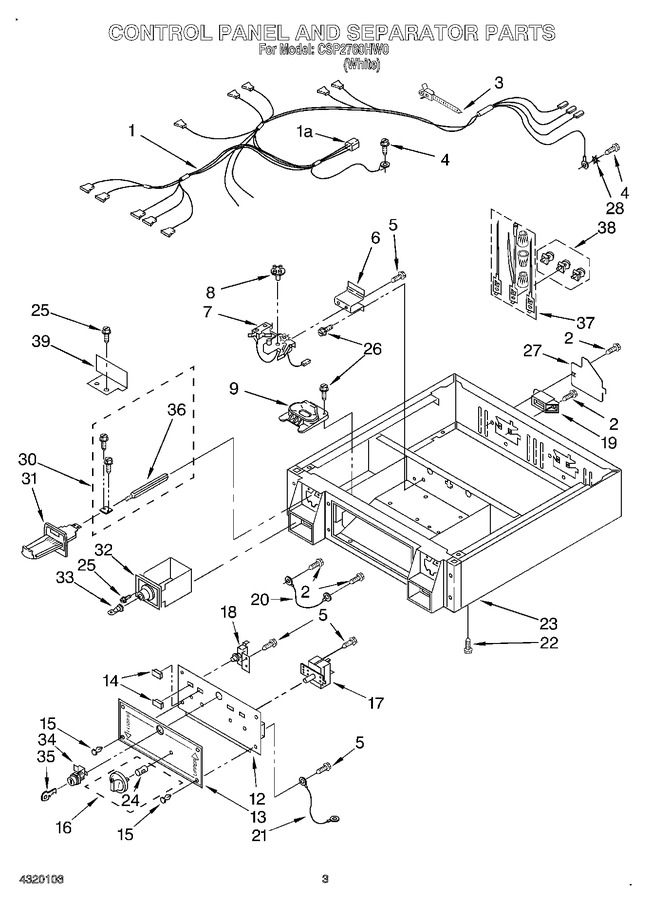

01 - Lower Cabinet And Front Panel
02 - Control Panel And Separator
03 - Upper Cabinet And Front Panel
04 - Upper And Lower Bulkhead
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3406275 | Harness, Wire (2) |
|
- | |||||
| 2 | W11676450 | Screw, 10-24 X 3/8 (2) (Replaces: 3400000) |
|
$ 14.76 | |||||
| 3 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 4 | W10850756 | Screw, 10-24 X 3/8 (4) (Replaces: 697776) |
|
$ 8.20 | |||||
| 5 | W11808444 | Screw, 8-32 X 5/16 (4) (Replaces: 98139) |
|
- | |||||
| 6 | 3390115 | Bracket, Timer (2) |
|
- | |||||
| 7 | 279737 | Timer (includes 4-pin Cam) (2) (Replaces: 3389668) |
|
Immediately | $ 312.10 | ||||
| 8 | WP3387974 | Cam (3 Pin (60 Min.)) (Replaces: 3387974) |
|
$ 8.74 | |||||
| 8 | 51-161-6 | Cam (6 Pin (30 Min.)) (Replaces: 343777) |
|
$ 34.52 | |||||
| 9 | 3389224 | Funnel, Coin (2) |
|
- | |||||
| 12 | 3391955 | Panel, Control |
|
- | |||||
| 13 | 3406132 | Insert, Decorative |
|
- | |||||
| 14 | 3349305 | Lens, Light (2) |
|
- | |||||
| 15 | 354239 | Rivet (4) |
|
- | |||||
| 16 | 3949703 | Knob (2) |
|
- | |||||
| 17 | W10330141 | Switch, Cycle (2) (Replaces: 3387810) |
|
$ 177.62 | |||||
| 18 | 3388231 | Switch, Push- To-start (2) |
|
- | |||||
| 19 | WP3397659 | Block, Terminal (2) (Replaces: 3397659) |
|
$ 24.17 | |||||
| 20 | 3390895 | Strut |
|
- | |||||
| 21 | 340025 | Wire, Ground |
|
- | |||||
| 22 | 3400500 | Bolt, 5-16 X 18 (2) |
|
Immediately | $ 14.04 | ||||
| 23 | 3402754 | Collar |
|
- | |||||
| 24 | WP688805 | Spring Clip, Knob (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 25 | WP356418 | Screw, No.10-32 (4) (Replaces: 96435) |
|
$ 9.26 | |||||
| 26 | 98437 | Screw (8) |
|
- | |||||
| 27 | W11539855 | Cover, Terminal Block (2) (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 28 | 3390443 | Retainer, Terminal (2) |
|
- | |||||
| 30 | W10128688 | Harns-wire |
|
- | |||||
| 33 | 2170653 | Cover |
|
- | |||||
| 36 | DA71-00068A | Stopper-do |
|
- | |||||
| 37 | 279318 | Terminal, Brass Tinned (3) (includes Illus. 31) |
|
Immediately | $ 106.04 | ||||
| 38 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 39 | 3390424 | Extension, Slide |
|
Immediately | $ 71.66 | ||||
| 1A | 692998 | Receptacle (2) |
|
- |
