SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel


02 - Optional

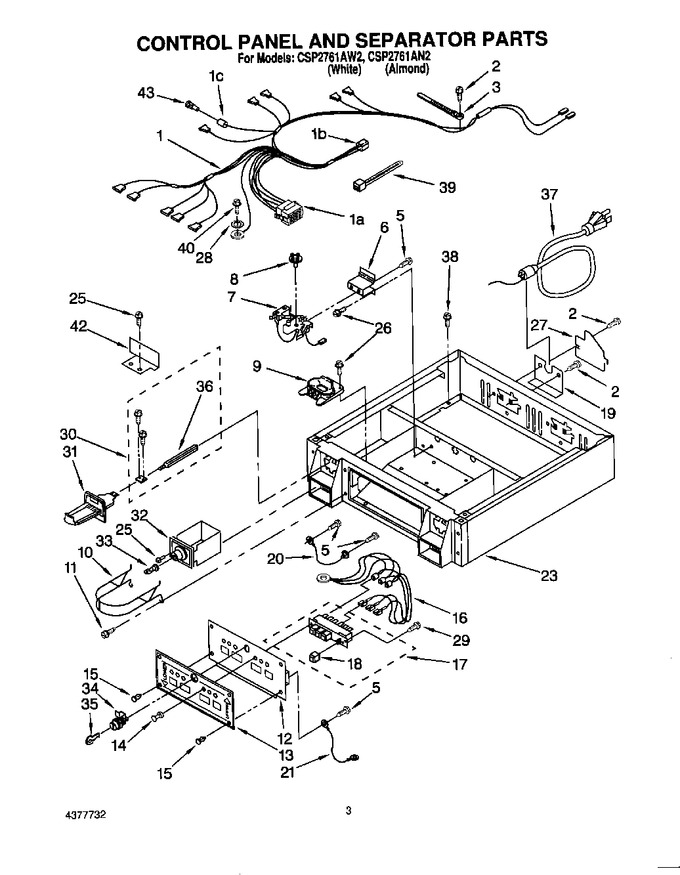

03 - Control Panel And Separator


04 - Upper Cabinet And Front Panel


05 - Optional


06 - Upper And Lower Bulkhead, Literature


07 - 3401797 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3401114		Harness, Wire (2)		Appelez-nous	-
2	W11676450		Screw, 10-24 X 3/8 (2)   (Replaces: 3400000)				$ 14.76
3	3389969		Tie, Cable 10-24 X 3/8 (4)		Appelez-nous	-
5	W11808444		Screw, 8-32 X 5/16 (4)   (Replaces: 98139)		Appelez-nous	-
6	3390115		Bracket, Timer (2)		Appelez-nous	-
7	279737		Timer (includes 4-pin Cam) (2)   (Replaces: 3389668)			Immediately	$ 312.10
8	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.74
8	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.79
8	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
9	3389224		Funnel, Coin (2)		Appelez-nous	-
10	3389232		Protector, Slide (2)		Appelez-nous	-
11	342043		Screw, 10-32 X 3/8 (4)		Appelez-nous	-
12	3389625		Panel, Control		Appelez-nous	-
13	3390036		Insert, Decorative		Appelez-nous	-
14	3389520		Lens, Light (6)		Appelez-nous	-
15	356388		Rivet (4)		Appelez-nous	-
16	3401177		Indicator, Light (2)		Appelez-nous	-
17	3401851		Switch, Pushbutton (2)				$ 122.99
18	3348587		Button, Pushbutton (8)				$ 12.40
19	3390189		Relief, Strain (2) 10-24 X 1/2		Appelez-nous	-
20	3393463		Strut		Appelez-nous	-
21	340025		Wire, Ground		Appelez-nous	-
23	3402385		Collar (white)		Appelez-nous	-
23	3402386		Collar (almond)		Appelez-nous	-
25	WP356418		Screw, No.10-32 (4)   (Replaces: 96435)				$ 9.26
26	98437		Screw (8)		Appelez-nous	-
27	W11539855		Cover, Terminal Block (2)   (Replaces: 3396795)			Immediately	$ 629.75
28	3390443		Retainer, Terminal (2)		Appelez-nous	-
29	WP489128		Screw, 8-32 X 7/16   (Replaces: 303921)				$ 11.40
37	W11222083		Power Cord   (Replaces: 3401402)				$ 126.62
38	WP489069		Screw, 8-18 X 1/2   (Replaces: 3393439)			Immediately	$ 8.40
39	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
40	W10850756		Screw, 10-32 X 1/2   (Replaces: 697776)				$ 8.20
42	3390424		Extension, Slide			Immediately	$ 71.66
43	351297		Plug		Appelez-nous	-
1A	385826		Receptacle (2) (uses Terminals 94614)		Appelez-nous	-
1B	717252		Receptacle, 2 Way		Appelez-nous	-
1C	351296		Receptacle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
