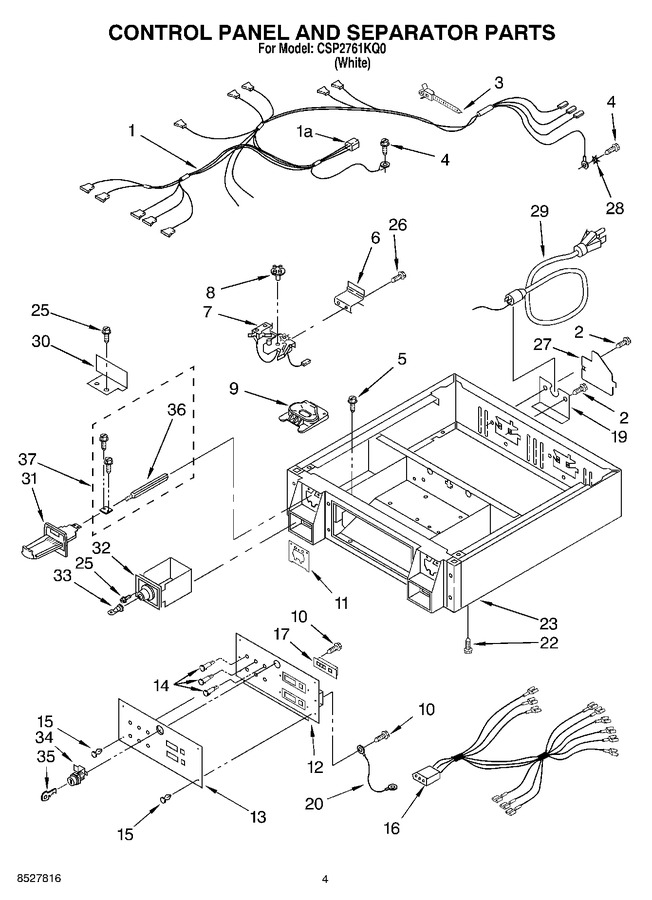

03 - Control Panel And Separator


04 - Upper Cabinet And Front Panel


05 - Upper And Lower Bulkhead


06 - 3401797 Burner, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8283295		Harness, Wire (2) 1a		Appelez-nous	-
2	W11676450		Screw, 10-24 X 3/8   (Replaces: 3400000)				$ 14.76
3	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
4	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 8.20
5	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
6	3390115		Bracket, Timer (2)		Appelez-nous	-
7	279737		Timer (includes 4-pin Cam) (2)   (Replaces: 3389668)			Immediately	$ 312.10
8	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.74
8	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
9	WP385421		Funnel, Coin (2)   (Replaces: 385421)			Immediately	$ 77.91
10	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 11.40
11	279950		Plate, Chute Adapter (includes Illus. 9)   (Replaces: 3954761)			Immediately	$ 28.89
12	3979100		Panel, Control		Appelez-nous	-
13	8527831		Insert, Decorative		Appelez-nous	-
14	3979326		Lamp, Indicator (amber)		Appelez-nous	-
14	3979325		Lamp, Indicator (red)		Appelez-nous	-
14	3979327		Lamp, Indicator (blue)		Appelez-nous	-
15	354239		Rivet (4)		Appelez-nous	-
16	8283296		Wire Jumper (light & Switch)		Appelez-nous	-
17	WPW10330137		Switch, Pushbutton (2)   (Replaces: 8316437)			Immediately	$ 339.56
19	3390189		Strain Relief		Appelez-nous	-
20	3401699		Strut (2)		Appelez-nous	-
22	3400500		Bolt, 5-16 X 18 (2)			Immediately	$ 14.04
23	3978853		Collar		Appelez-nous	-
25	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 9.26
26	WP3400094		Screw, 10-32 X 3/8   (Replaces: 3400094)				$ 9.26
27	W11539855		Cover, Terminal Block (2)   (Replaces: 3396795)			Immediately	$ 629.75
28	3390443		Retainer, Terminal (2)		Appelez-nous	-
29	W11628810		Power Cord   (Replaces: 3401401)				$ 101.90
30	3390424		Extension, Slide			Immediately	$ 71.66
33	WP4391960		Element   (Replaces: 279598)			Immediately	$ 60.56
36	3393262		Bolt, Slide Mechanism		Appelez-nous	-
37	W10128688		Harns-wire		Appelez-nous	-
1A	3936144		Connector (3-circuit)				$ 21.22
