SELECT A DIAGRAM

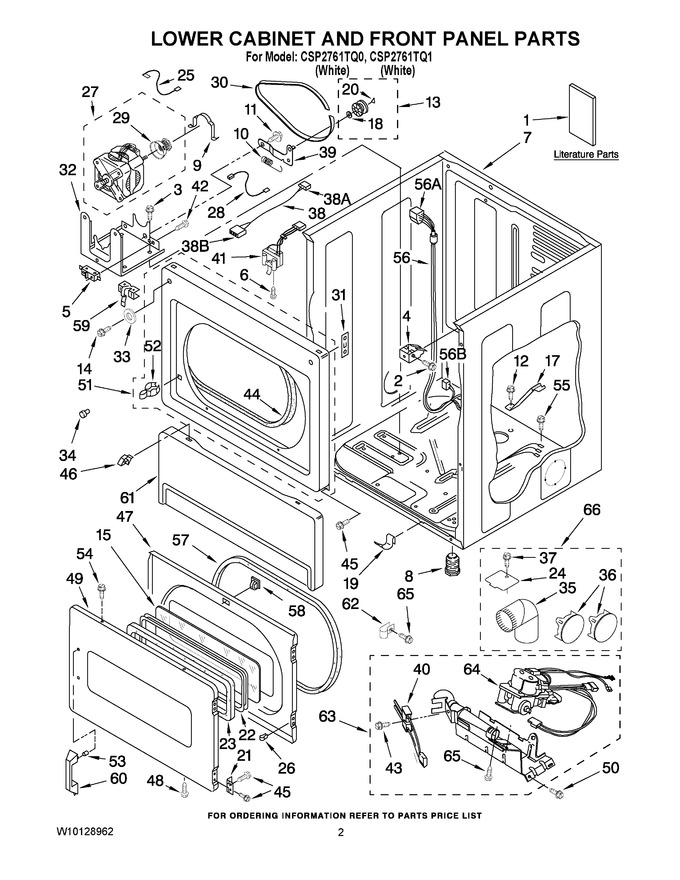

01 - Lower Cabinet And Front Panel Parts


02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - 3401797 Burner Assembly


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10135152		Installation Instructions		Appelez-nous	-
1	8576825		Wiring Diagram		Appelez-nous	-
1	W10128962		Repair Parts List		Appelez-nous	-
2	681615		Screw, 10-16 X 1   (Replaces: 3391915)				$ 13.88
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.85
4	3391846		Clip, Front Panel (2)				$ 21.15
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
7	W11417441		Cabinet, Lower   (Replaces: 8310656)				$ 419.21
8	49621		Foot, Dryer (plastic) (4)   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 7.68
15	3392918		Window (not Shown Part 3396122, Window Pack. Includes Illus.15 & 23)		Appelez-nous	-
17	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
18	WPW10121334		Washer, Thurst   (Replaces: W10121334)			Immediately	$ 7.19
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.24
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 81.41
22	3392914		Frame, Window		Appelez-nous	-
23	3392915		Gasket, Window				$ 58.46
24	WPW10354249		Plate, Cover (bottom Exhaust)   (Replaces: 3394331)				$ 8.96
25	3398948		Wire, Jumper				$ 61.58
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10841144		Motor Assembly 60 Hz.   (Replaces: 8538264)			Immediately	$ 234.31
28	W10167612		Wire, Jumper				$ 12.78
29	WP8066184		Pulley, 60 Hz.   (Replaces: 8066184)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.11
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	W11089212		Washer   (Replaces: 3392186)				$ 9.67
34	693152		Bumper				$ 10.96
35	279731		4`` - 90 Elbow		Appelez-nous	-
36	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
37	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.79
38	717253		Plug, 2-way		Appelez-nous	-
38	8283298		Jumper, Door Switch				$ 83.73
38	3936144		Connector				$ 20.21
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 55.64
42	WP98129		Screw, 6/20 X 1 1/16   (Replaces: 98129)				$ 7.56
43	WPW10366705		Screw, 8-32 X 3/4   (Replaces: 3393909)				$ 7.50
44	WP3387242		Seal, Front Pane   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	W10244331		Door, Rear   (Replaces: W10205622)		Appelez-nous	-
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.19
49	W10322548		Door, Front   (Replaces: W10205649)		Appelez-nous	-
50	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
51	3393081		Upper Front Panel		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	3393933		Fastener		Appelez-nous	-
54	718032		Screw, 8-18 X 3/4		Appelez-nous	-
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
56	717252		Receptacle		Appelez-nous	-
56	3390423		Plug, Mult- Terminal		Appelez-nous	-
56	8529990		Harness (lower)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
59	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 33.11
60	WPW10213202		Handle, Door   (Replaces: W10213202)			Immediately	$ 82.31
61	WP3406797		Panel, Toe (includes Illus. 34)   (Replaces: 697215)				$ 238.33
62	3387561		Clamp, Pipe		Appelez-nous	-
63	3401797		Burner Assembly 60 Hz. (refer To Pages 10 & 11 For Breakdown)		Appelez-nous	-
64	279923		Valve, Gas (complete) 60 Hz.   (Replaces: 8281911)			Immediately	$ 286.03
65	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 7.19
66	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.65
