SELECT A DIAGRAM

02 - Lower Cabinet/front Panel Parts

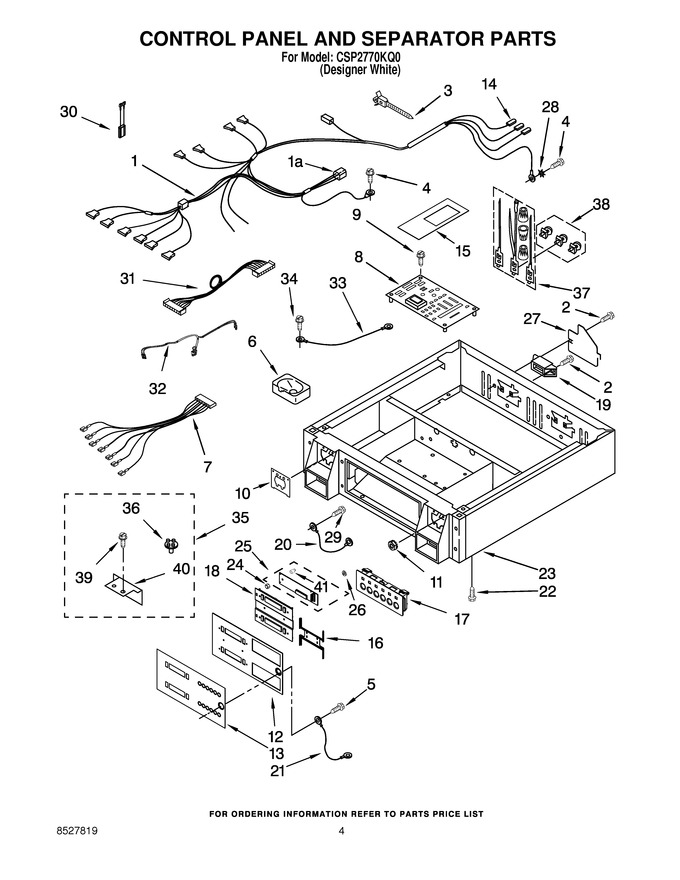

04 - Control Panel/separator Parts


06 - Upper Cabinet/front Panel Parts


08 - Upper/lower Bulkhead Parts/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8529857		Collar Harness (lower)		Appelez-nous	-
2	W11676450		Screw, 10-24 X 3/8   (Replaces: 3400000)				$ 14.76
3	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
4	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 8.20
5	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 8.85
6	WP385421		Funnel, Coin (2)   (Replaces: 385421)			Immediately	$ 77.91
7	8529860		Harness, Switch		Appelez-nous	-
8	3407165		Control Board				$ 351.31
9	WPW10366705		Screw, 8-32 X 7/8``   (Replaces: 3393909)				$ 7.88
10	279950		Plate, Chute Adapter (2) (includes Illus. 6)   (Replaces: 3954761)			Immediately	$ 28.89
11	WP3400029		Nut, 10-32 (6)   (Replaces: 3400029)			Immediately	$ 8.19
12	3979246		Panel, Control		Appelez-nous	-
13	8528128		Insert & Button Overlay		Appelez-nous	-
14	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
15	8538333		Board-shield		Appelez-nous	-
16	3979254		Bracket, Switch Mounting		Appelez-nous	-
17	8530176		Switch, Clean Touch (2)		Appelez-nous	-
18	3979237		Lens Display		Appelez-nous	-
19	WP3397659		Block, Terminal (2)   (Replaces: 3397659)				$ 24.17
20	3401708		Wire, Ground		Appelez-nous	-
21	8539881		Jumper Wire		Appelez-nous	-
22	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 14.04
23	3978853		Collar		Appelez-nous	-
24	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 6.47
25	8528141		Display Board Assembly (includes Illus. 41)		Appelez-nous	-
26	2006252		Washer, Nylon		Appelez-nous	-
27	W11539855		Cover, Terminal Block (2)   (Replaces: 3396795)			Immediately	$ 629.75
28	3390443		Retainer, Terminal (2)		Appelez-nous	-
29	WP489399		Screw, 8-32 X 5/16   (Replaces: 489399)				$ 7.30
30	3406197		A.c. Inline Filter		Appelez-nous	-
31	3955730		Harness, Control To Display		Appelez-nous	-
32	3955729		Harness, Wiring		Appelez-nous	-
33	3401709		Jumper Wire, Ground		Appelez-nous	-
34	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
35	3390615		Screw & Cam Bag Assembly		Appelez-nous	-
36	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
37	279318		Terminal, Brass Tinned (3)			Immediately	$ 106.04
38	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
39	3400086		Screw, 10-32 X 3/8				$ 12.77
40	3390424		Extension, Slide			Immediately	$ 71.66
41	8541016		Stacking Spacer		Appelez-nous	-
1A	692998		Receptacle (2)		Appelez-nous	-
NI	8529848		Collar Harness (upper 1a 692998 Receptacle (2))		Appelez-nous	-
NI	WP339853		Cam (12-pin (15 Min))   (Replaces: 339853)				$ 8.11
NI	WP339854		Cam (9 Pin (20 Min.))   (Replaces: 339854)				$ 6.80
NI	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.79
NI	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.74

    View Diagram in Separate Window       Print Part List
