SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel Parts


02 - Optional Parts (not Included)

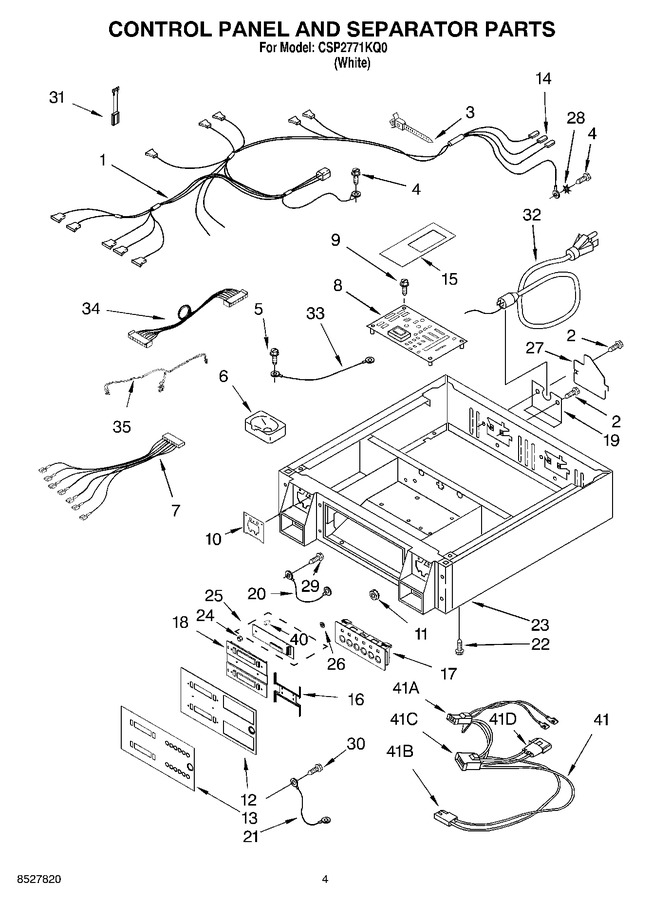

03 - Control Panel And Separator Parts


04 - Upper Cabinet And Front Panel Parts


05 - Upper And Lower Bulkhead Parts


06 - 3401797 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8529858		Collar Harness (lower)		Appelez-nous	-
1	8529849		Collar Harness (upper)		Appelez-nous	-
2	W11676450		Screw, 10-24 X 3/8   (Replaces: 3400000)				$ 14.76
3	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
4	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 8.20
5	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
6	WP385421		Funnel, Coin (2)   (Replaces: 385421)			Immediately	$ 77.91
7	8529860		Harness, Switch		Appelez-nous	-
8	3407165		Control Board (2)				$ 351.31
9	WPW10366705		Screw, 8-32 X 7/8``   (Replaces: 3393909)				$ 7.88
10	279950		Plate, Chute Adapter (2) (includes Illus. 6)   (Replaces: 3954761)			Immediately	$ 28.89
11	WP3400029		Nut, 10-32 (6)   (Replaces: 3400029)			Immediately	$ 8.19
12	3979246		Panel, Control		Appelez-nous	-
13	8528128		Insert & Button Overlay		Appelez-nous	-
14	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
15	8538333		Board-shield (2)		Appelez-nous	-
16	3979254		Bracket, Switch Mounting		Appelez-nous	-
17	8530176		Switch, Clean Touch (2)		Appelez-nous	-
18	3979237		Lens Display		Appelez-nous	-
19	3390189		Strain Relief		Appelez-nous	-
20	3401708		Wire, Ground		Appelez-nous	-
21	8539881		Jumper Wire		Appelez-nous	-
22	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 14.04
23	3978853		Collar		Appelez-nous	-
24	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 6.47
25	8528141		Display Board Assembly (2) (includes Illus. 40)		Appelez-nous	-
26	2006252		Washer, Nylon		Appelez-nous	-
27	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 629.75
28	3390443		Retainer, Terminal		Appelez-nous	-
29	WP489399		Screw, 8-32 X 5/16   (Replaces: 489399)				$ 7.30
30	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 8.85
31	3406197		A.c. Inline Filter		Appelez-nous	-
32	W11222083		Power Cord   (Replaces: 3401402)				$ 126.62
33	3401709		Jumper Wire, Ground		Appelez-nous	-
34	3955730		Harness, Control To Display		Appelez-nous	-
35	3955729		Harness, Wire		Appelez-nous	-
40	8541016		Stacking Spacer		Appelez-nous	-
41	WP3401850		Harness, Gas   (Replaces: 3401850)				$ 255.13
41A	WP3403499		Connector, 2 Position   (Replaces: 3403499)				$ 6.02
41B	717252		Plug, 2-way		Appelez-nous	-
41C	WP3403498		Connector, 3 Position   (Replaces: 3403498)				$ 7.30
41D	697779		Plug, 3-way		Appelez-nous	-
