SELECT A DIAGRAM

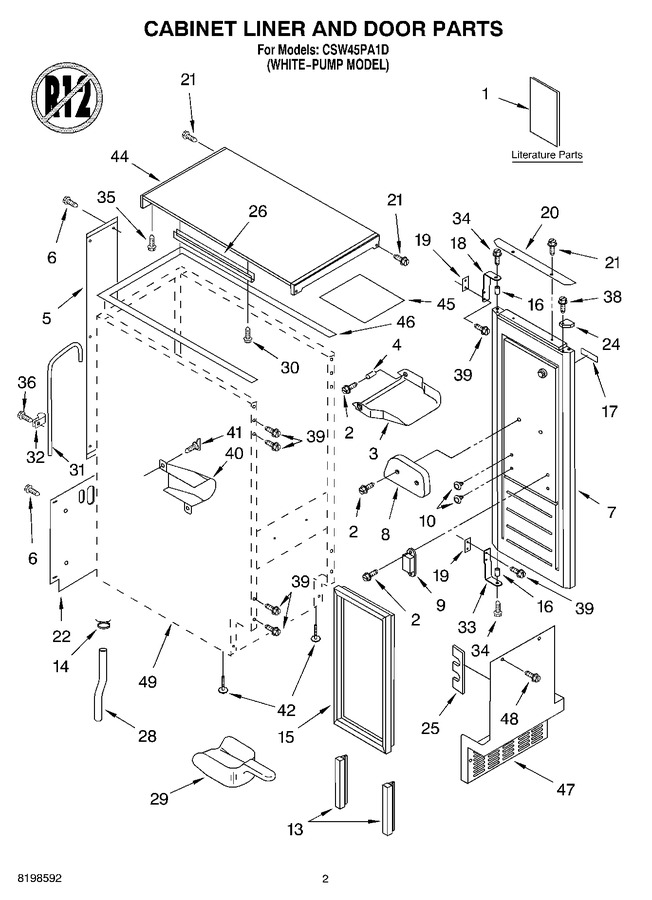

01 - Cabinet Liner And Door Parts


02 - Evaporator Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2217247		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2217232		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2185742		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring   (Replaces: 2185575)		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2932803W		Door		Appelez-nous	-
8	2185695		Cam, Door				$ 95.66
9	W11223751		Assembly, Magnetic Catch   (Replaces: 2185991)				$ 62.40
10	WP2189000		Plug, Hole   (Replaces: 2189000)			Immediately	$ 7.77
13	2217367		Gasket, Bottom		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 489503)			Immediately	$ 11.29
15	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 285.98
16	2185640		Sleeve, Hinge		Appelez-nous	-
17	2185977		Nameplate		Appelez-nous	-
18	2185710		Hinge, Top				$ 94.38
19	2185709		Shim, Hinge		Appelez-nous	-
20	2208495W		Handle, Door		Appelez-nous	-
21	8281184		Screw (stainless)		Appelez-nous	-
21	8281188		Screw (white)		Appelez-nous	-
22	WPW10136199		Assembly, Unit Cover   (Replaces: 2185730)				$ 108.85
24	2185656W		Filler, Endcap (right Side)		Appelez-nous	-
24	2185655W		Filler, Endcap (left Side)		Appelez-nous	-
25	W10532250		Pad, Foam   (Replaces: 2185756)		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
28	2185672		Tube, Drain (drain To Pump)		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
31	2185926		Tube, Air Vent		Appelez-nous	-
32	WP2208367		Clamp, Tube (3)   (Replaces: 2208367)				$ 73.20
33	2185711		Hinge, Bottom				$ 96.36
34	2185712		Pin, Hinge				$ 49.37
35	WP250830		Screw, Ground 8-32 X 1/2   (Replaces: 489048)				$ 8.78
36	WP489464		Screw 8-18 X 1/2   (Replaces: 8281265)			Immediately	$ 8.38
38	348689		Screw 8-18 X 3/4				$ 78.07
39	WP999367		Screw 10-32x11/16   (Replaces: 489423)				$ 8.56
40	2185927		Holder, Scoop				$ 89.07
41	8281228		Thumbscrew		Appelez-nous	-
42	8193716		Leg, Leveler   (Replaces: 3376439)			Immediately	$ 88.96
44	2929700W		Top		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	W11624957		Gasket, Top Panel   (Replaces: 2217293)		Appelez-nous	-
47	WP2185571W		Grill, Front   (Replaces: 2185571W)				$ 146.35
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 8.55
49	978030		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (valve, Acces				$ 137.25
49	WP978025		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (valve, Acces   (Replaces: 978025)			Immediately	$ 110.51
49	WP503695		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (sealer, Cork   (Replaces: 503695)				$ 123.84
49	WP505587		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (sealer, Mast   (Replaces: 505587)			Immediately	$ 182.65
49	876370		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (kit, Insulat   (Replaces: 479976)				$ 243.14
49	978026		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (valve, Acces			Immediately	$ 134.49
49	SF5538		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (valve, Acces   (Replaces: 978027)				$ 21.64
49	978028		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (valve, Acces		Appelez-nous	-
49	978029		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (valve, Acces				$ 93.85
49	W11179302		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (cleaner, Ice   (Replaces: 8171307)			Immediately	$ 31.34
49	WP279368		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (cement, Insu   (Replaces: 797403)			Immediately	$ 116.46
49	212643		Cabinet & Liner (not Serviced) Parts Not Illustrated And Optional Parts (not Included) (sealer, Gum			Immediately	$ 82.13

    View Diagram in Separate Window       Print Part List
