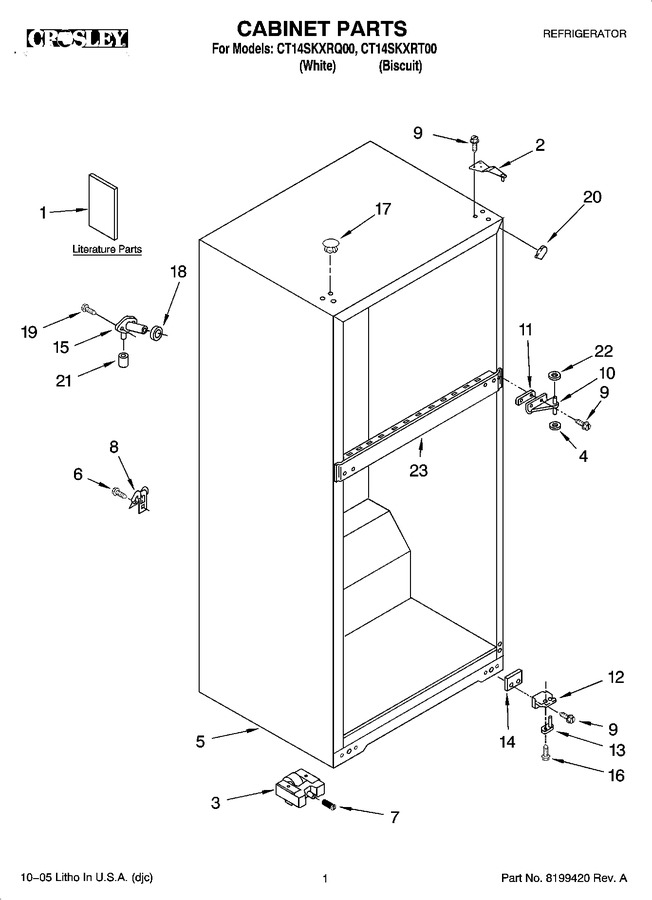

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	2265209		Service & Wiring Sheet		Appelez-nous	-
1	2266154		Energy Label		Appelez-nous	-
1	2266170		Use & Care Guide		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 99.45
3	2217757		Roller-front		Appelez-nous	-
4	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
5	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
7	2222100		Screw				$ 99.81
8	549193		Clamp-cord				$ 13.39
9	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
10	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 78.16
11	2166043		Shim, Hinge Center				$ 66.44
12	WP2325482		Hinge Butt   (Replaces: 2221926)			Immediately	$ 76.19
13	9791682		Hinge-pin, Bottom				$ 26.60
14	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
15	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.99
16	WP3428970		Screw   (Replaces: 3428970)				$ 10.91
17	2200924		Hole Plug (6) (biscuit)		Appelez-nous	-
17	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 21.78
18	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
19	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.79
20	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 7.70
20	2202282		Corner Filler (biscuit)		Appelez-nous	-
21	WP487996		Cap Bushing   (Replaces: 487996)				$ 8.26
22	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
23	N/A		Rail Center (not Serviced)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
