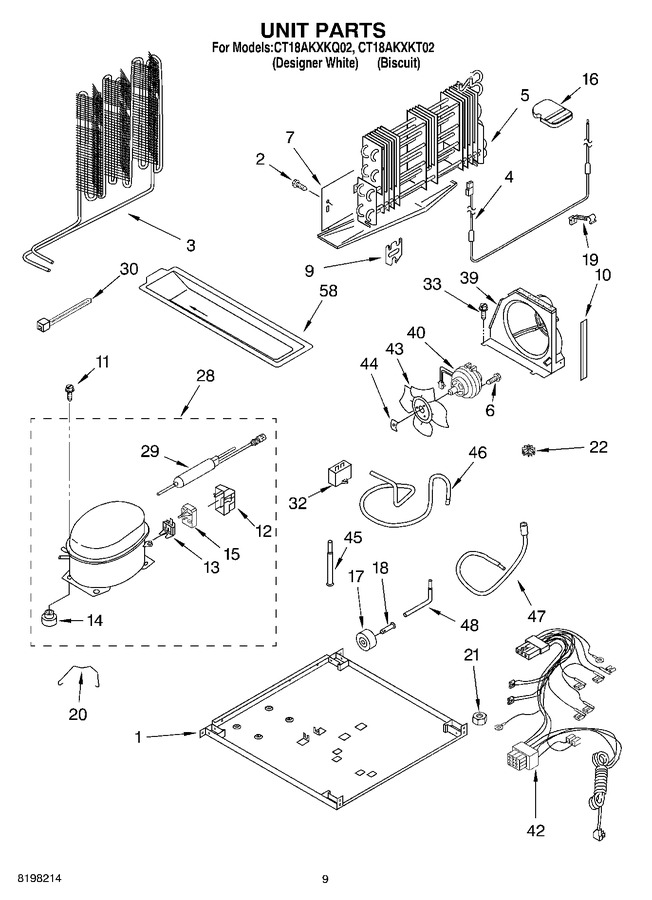

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205341		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 8.18
3	2210454		Condenser		Appelez-nous	-
4	WP2315531		Heater, Defrost   (Replaces: 2176300)				$ 104.62
5	2195391		Evaporator Assy.		Appelez-nous	-
6	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 7.55
7	2172619		Drain Pan		Appelez-nous	-
9	2176301		Bracket, Heater				$ 6.37
10	2163780		Extension, Air Baffle		Appelez-nous	-
11	876811		Screw   (Replaces: 489373)				$ 7.79
12	WP2162358		Cover ((service))   (Replaces: 4387731)				$ 95.29
13	WP4387938		Overload (service (includes Relay))   (Replaces: 4387938)				$ 198.58
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.79
15	8201769		Start-device Combination (start Relay And Overload For Production Compressor Only)   (Replaces: 2212964)				$ 193.01
16	2201184		Support Block				$ 6.43
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 19.12
19	2182338		Clip, Heater				$ 6.62
20	2212998		Bale Strap, Compressor		Appelez-nous	-
21	N/A		Nut (not Serviced)		Appelez-nous	-
22	531933		Grommet				$ 5.70
28	W10823815		Compressor (includes Items 12,13,14,15,29)   (Replaces: 2218965)				$ 707.86
29	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 57.13
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 8.30
32	WPW10662129		Run Capacitor   (Replaces: 2169373)			Immediately	$ 58.86
33	3400518		Screw				$ 13.63
39	2198921		Air Baffle		Appelez-nous	-
40	W10822259		Motor, Condenser   (Replaces: 2188537)			Immediately	$ 221.30
42	2187384		Wire Assy. Unit		Appelez-nous	-
43	2190685		Fan, Blade				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 8.43
45	2212603		Tube, Transition		Appelez-nous	-
46	2205294		Tube, Discharge				$ 54.65
47	2205293		Tube, Suction				$ 103.20
48	W11676464		Tube, Process   (Replaces: 2212848)				$ 108.61
58	833938		Kit, Terminal Connector				$ 8.47
58	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
58	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
58	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
58	350956		Enamel, Almond (13 Oz. Spray Can)				$ 54.01
58	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
58	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
58	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
58	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
58	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
58	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
58	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
58	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
58	1117510		Torx Key				$ 5.84
58	2210451		Evap. Tray				$ 66.37
58	978026		Valve, Access (5/16``)			Immediately	$ 134.49
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 137.25
58	876764		Valve, Access(3/16``)			Immediately	$ 95.92
58	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
58	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
58	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
58	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
58	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
58	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
58	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
58	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
58	350942		Primer White (13 Oz. Spray Can)				$ 94.14
58	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
58	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
