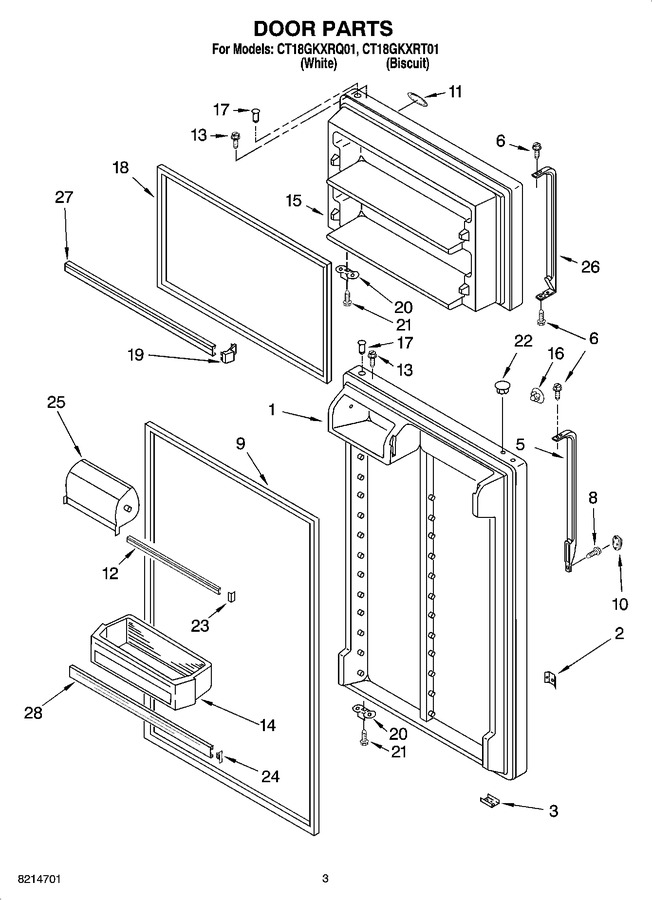

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183898		Refrigerator Door (includes Illus. 2, 3, 9 & 17) (white)		Appelez-nous	-
1	2205281		Refrigerator Door (includes Illus. 2, 3, 9 & 17) (biscuit)		Appelez-nous	-
2	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
3	2183198		Tap Plate		Appelez-nous	-
5	WP2202807W		Handle, Refrigerator (white)   (Replaces: 2202807W)				$ 155.22
5	2202807T		Handle, Refrigerator (biscuit)				$ 64.39
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2159057		Door Gasket, Magnetic   (Replaces: 2202874)			Immediately	$ 164.66
10	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.75
10	2202819T		Cover, Screw (biscuit)				$ 8.02
11	2301599T		Nameplate (biscuit)		Appelez-nous	-
11	2301599W		Nameplate (white)		Appelez-nous	-
12	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
13	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
14	WP2204810		Door Bin (3)   (Replaces: 2204810)				$ 79.59
15	2205279		Freezer Door (includes Illus. 3,17 & 18) (biscuit)		Appelez-nous	-
15	2182487		Freezer Door (includes Illus. 3, 17 & 18) (white)		Appelez-nous	-
16	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.40
16	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.59
17	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
18	2159327		Door Gasket, Magnetic   (Replaces: 2214966)			Immediately	$ 164.58
19	WP2195916K		Endcap, Trim (4)   (Replaces: 2195916)			Immediately	$ 12.55
20	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
21	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
22	WP2212648		Hole Plug, Hinge (2) (white)   (Replaces: 2212648)			Immediately	$ 7.80
22	WP2212649		Hole Plug, Hinge (2) (biscuit)   (Replaces: 2212649)				$ 7.61
23	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 7.65
24	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.18
25	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 50.33
26	WP2202806W		Handle, Freezer (white)   (Replaces: 2202806W)				$ 148.00
26	2202806T		Handle, Freezer (biscuit)				$ 63.61
27	2195946		Trim-door (2)				$ 46.58
28	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 129.76
