SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Door Parts


03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Liner Parts


06 - Unit Parts, Optional Parts

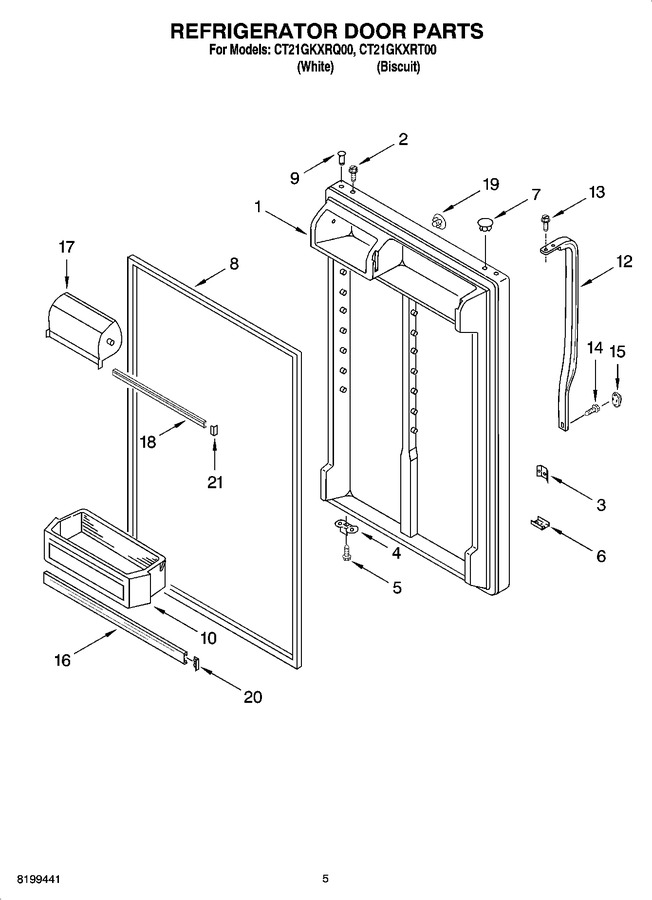

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023679		Refrigerator Door (includes Illus. 3,6,8 & 9) (white)   (Replaces: 2183920)				$ 758.35
1	W11023688		Refrigerator Door (includes Illus. 3,6,8 & 9) (biscuit)   (Replaces: 2205284)		Appelez-nous	-
2	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
3	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	2183198		Tap Plate		Appelez-nous	-
7	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.99
7	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
8	2159061		Door Gasket, Magnetic   (Replaces: 2202875)			Immediately	$ 183.67
9	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
10	WP2204812		Bin, Door Shelf (3)   (Replaces: 2204812)				$ 80.45
12	2202807T		Handle, Door (biscuit)				$ 64.39
12	WP2202807W		Handle, Door (white)   (Replaces: 2202807W)				$ 162.98
13	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 7.55
14	WP8281146		Screw 8-15 X 1/2   (Replaces: 8281146)				$ 8.18
15	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 8.14
15	2202819T		Screw Cover (biscuit)				$ 8.02
16	WPW10421486		Trim, Door Shelf   (Replaces: 2195948)				$ 114.74
17	WP2218118		Door, Compartment   (Replaces: 2218118)				$ 81.92
18	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 124.32
19	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.77
19	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.97
20	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.79
21	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 8.03

    View Diagram in Separate Window       Print Part List
