SELECT A DIAGRAM

01 - Cabinet Parts

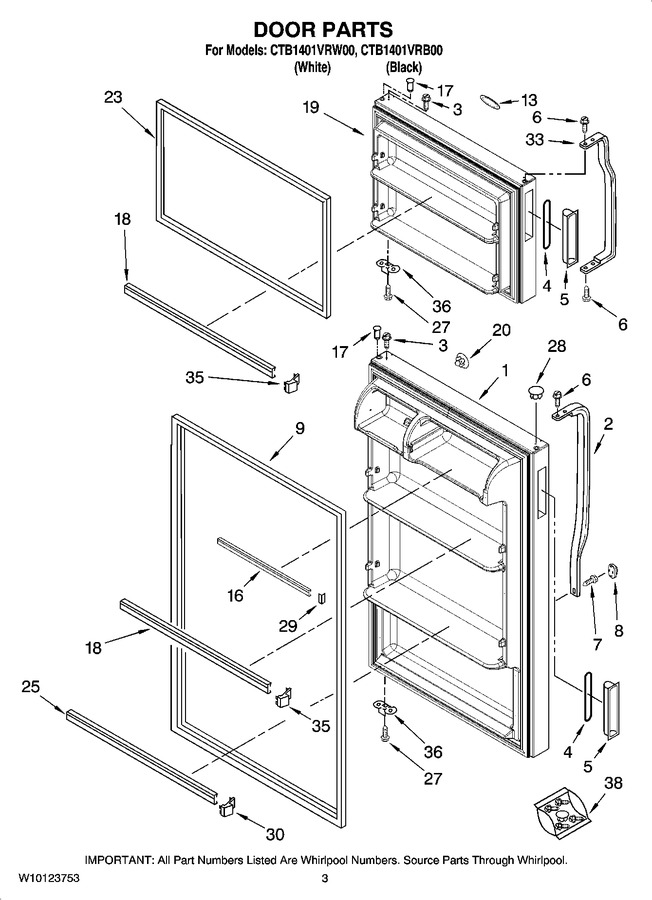

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316197W		Refrigerator Door Includes (9&17) (white)				$ 609.89
1	2316197B		Refrigerator Door Includes (9&17) (black)		Appelez-nous	-
2	WP2221946W		Handle, Refrigerator (bow) (white)   (Replaces: 2221946W)			Immediately	$ 130.11
2	WP2326169B		Handle, Refrigerator (bow) (black)   (Replaces: 2326169B)				$ 147.38
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
4	2222107		Gasket, Handle		Appelez-nous	-
5	WP984493		Handle, Snap-in (white)   (Replaces: 984493)				$ 109.04
5	984493B		Handle, Snap-in (black)		Appelez-nous	-
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
7	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
8	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.75
8	WP2202819B		Cover, Screw (black)   (Replaces: 2202819B)				$ 10.89
9	WP2319265T		Door Gasket, Magnetic (beige)   (Replaces: 2264506)			Immediately	$ 184.89
9	2319265B		Door Gasket, Magnetic (black)   (Replaces: 2264724)				$ 313.81
13	2328563		Nameplate (black)		Appelez-nous	-
13	2326131		Nameplate (white)		Appelez-nous	-
16	W11129820		Trim, Door Shelf   (Replaces: 2266729)			Immediately	$ 121.28
17	WP2183003		Thimble   (Replaces: 2262054)				$ 7.75
18	WP2266727		Trim-door   (Replaces: 2266727)			Immediately	$ 92.50
19	2316196W		Freezer Door Includes (17 & 23) (white)				$ 545.55
19	2316196B		Freezer Door Includes (17 & 23) (black)		Appelez-nous	-
20	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.40
20	WP2189009		Hole Plug, Handle (black)   (Replaces: 2189009)				$ 7.25
23	WP2319263T		Door Gasket, Magnetic (beige)   (Replaces: 2263257)			Immediately	$ 169.53
23	WP2319263B		Door Gasket, Magnetic (black)   (Replaces: 2264722)			Immediately	$ 255.50
25	WP2266738		Trim, Door Shelf   (Replaces: 2266738)				$ 111.69
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
28	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 23.06
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2195916K		Plug, Trim   (Replaces: 2195916)			Immediately	$ 12.55
33	WP2202098		Handle, Freezer (bow) (white)   (Replaces: 2202098)				$ 149.35
33	2202098B		Handle, Freezer (bow) (black)				$ 144.03
35	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 12.62
36	2217944		Bracket, Door Stop				$ 26.55
38	2262996B		Hole Plug Kit (if Bow Handle Is Removed) (black)		Appelez-nous	-
38	2262996		Hole Plug Kit (if Bow Handle Is Removed) (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
