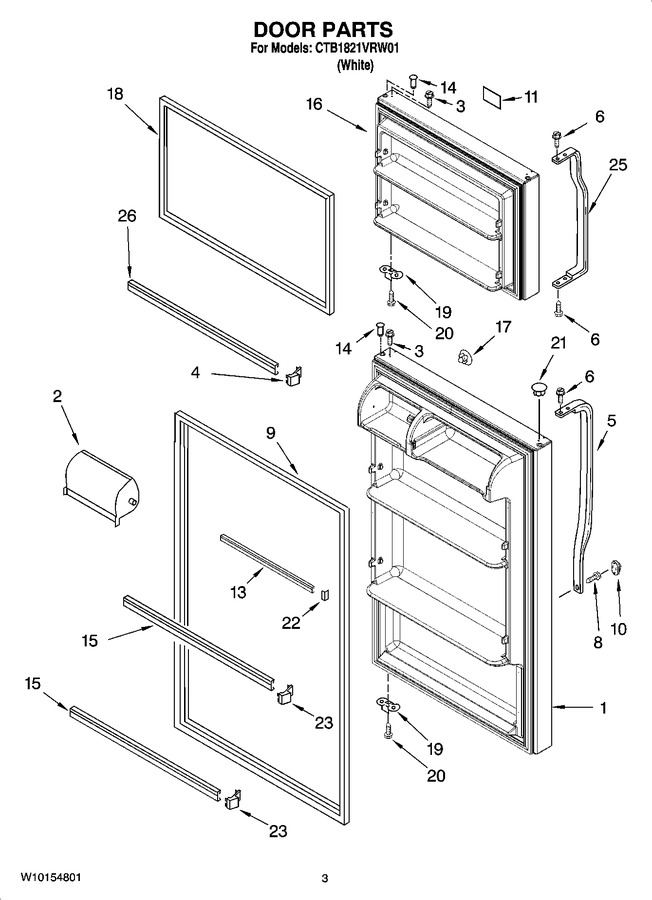

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2264750W		Refrigerator Door (includes Illus. 9 & 14) (white)		Appelez-nous	-
2	WP2207942		Compartment Door   (Replaces: 2207942)			Immediately	$ 58.76
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
4	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 12.62
5	WP2221946W		Handle, Refrigerator (white)   (Replaces: 2221946W)			Immediately	$ 130.11
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	WP2319264T		Door Gasket, Magnetic   (Replaces: 2263258)			Immediately	$ 192.71
10	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 7.75
11	2326131		Nameplate		Appelez-nous	-
13	W11129820		Trim, Door Shelf (upper)   (Replaces: 2266729)			Immediately	$ 121.28
14	WP2183003		Thimble   (Replaces: 2262054)				$ 7.75
15	WP2266738		Trim, Door (wide)   (Replaces: 2266738)				$ 111.69
16	2263254W		Freezer Door (includes Illus. 14 & 18) (white)		Appelez-nous	-
17	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.40
18	WP2319263T		Door Gasket, Magnetic   (Replaces: 2263257)			Immediately	$ 169.53
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
21	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
22	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
23	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 12.55
25	WP2202098		Handle, Freezer (white)   (Replaces: 2202098)				$ 149.35
26	WP2266727		Trim, Door (2) (narrow)   (Replaces: 2266727)			Immediately	$ 92.50
