Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10161215 Lower Dishrack Assembly   (Replaces: 8539225) Special Order $ 173.46

2 WP8268825 Tower, Protector   (Replaces: 8268825) Special Order $ 103.71

3 WP3385142 Bumper, Dishrack (2)   (Replaces: 3385142) Special Order $ 90.30

4 WP8268645 Wheel & Transport Assembly (4)   (Replaces: 8268645) In-Stock Immediately $ 62.31

5 WP8539066 Basket, Silverware   (Replaces: 8539066) Special Order $ 101.45

6 WP3385089 Track, Dishrack (2)   (Replaces: 3385089) In-Stock Immediately $ 80.00

7 WP8565925 Stop, Track (4)   (Replaces: 8565920) In-Stock Immediately $ 6.87

8 W11752368 Dishrack, Upper   (Replaces: W10164198) Special Order $ 234.78

9 WPW10204131 Mount, Rack Assembly   (Replaces: W10204114) In-Stock Immediately $ 9.16

10 8268815 Clip, No Flip Special Order $ 23.69


    View Diagram in Separate Window     Print Icon   Print Part List

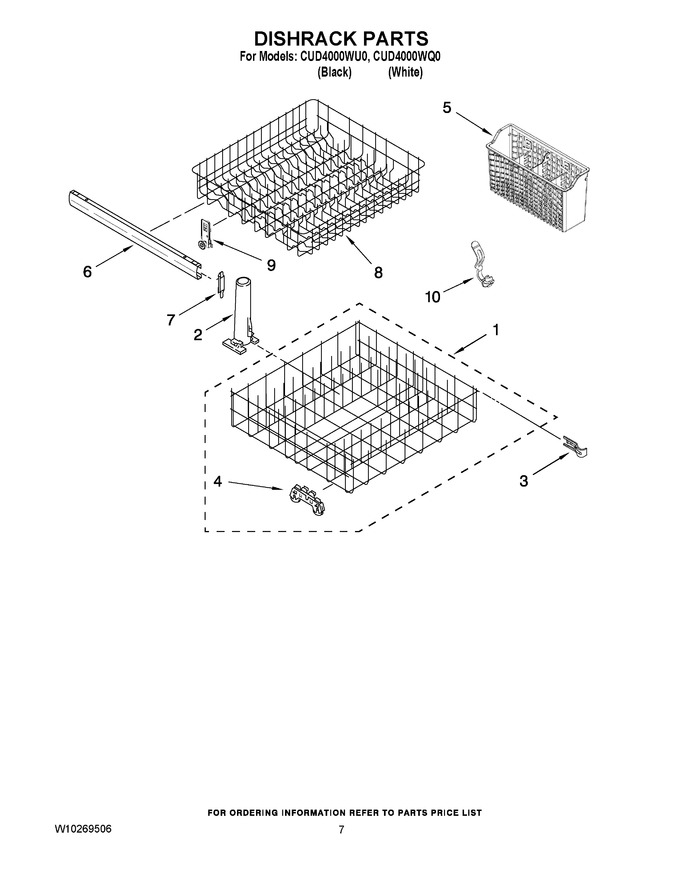

Diagram for CUD4000WU0
