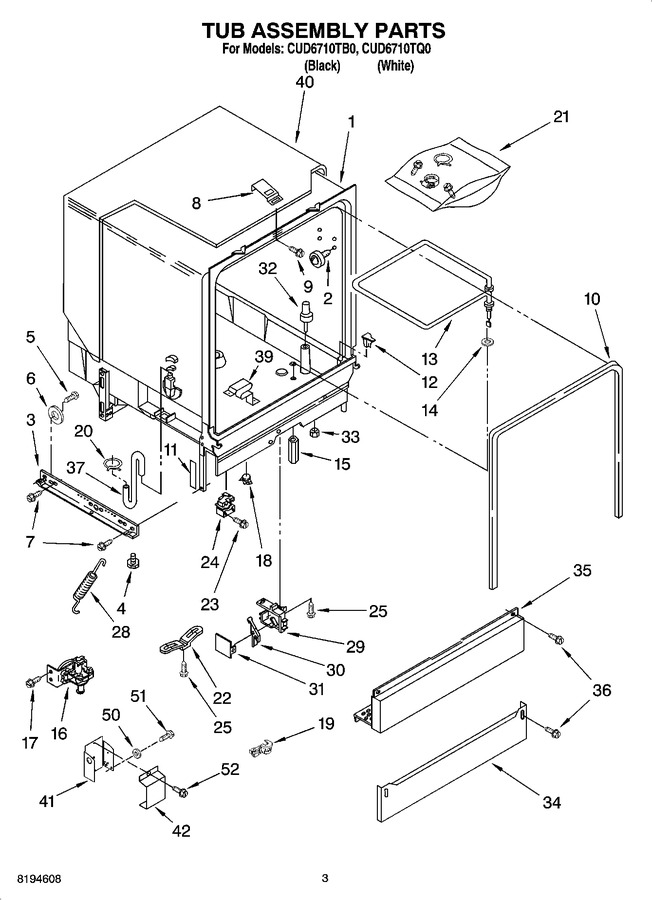

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10082658		Tub Assembly		Appelez-nous	-
2	WP8528831		Tub, Wheel Assembly (8)   (Replaces: 8528831)			Immediately	$ 19.58
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 88.96
5	3370389		Screw, Shoulder				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
8	3378149		Plate, Latch				$ 44.37
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
11	8052018		Pad, Friction		Appelez-nous	-
12	WP8528862		Deflector (2)   (Replaces: 8528862)				$ 63.90
13	WPW10082896		Heater (includes Item 14)   (Replaces: 8519830)				$ 141.38
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	WPW10477552		Nut (2) (heater Terminal)   (Replaces: 8268548)			Immediately	$ 8.23
16	W10844024		Water Valve   (Replaces: 8283345)			Immediately	$ 96.30
17	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
18	WP661566		Thermostat, Hi-limit   (Replaces: 661566)			Immediately	$ 31.28
19	W11384788		Strain, Relief   (Replaces: 8573061)				$ 22.59
20	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.82
21	3369816		Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps				$ 34.93
22	W10539489		Bracket, Thermostat   (Replaces: 3378595)				$ 20.14
23	WP489128		Screw   (Replaces: 3370225)				$ 11.40
24	3369447		Relay				$ 52.29
25	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
28	WP3379383		Spring, Door (2)   (Replaces: 3379383)			Immediately	$ 25.30
29	8318218		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	8318219		Cover, Switch Housing				$ 14.53
32	WP3376397		Float & Washer Assembly   (Replaces: 8519587)				$ 108.64
33	717488		Nut				$ 12.83
34	3368942		Panel, Toe (black)		Appelez-nous	-
34	9742861		Panel, Toe (white)		Appelez-nous	-
35	3379387		Panel, Access (black)		Appelez-nous	-
35	3379388		Panel, Access (white)				$ 75.13
36	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
37	3369414		Hose, Inlet		Appelez-nous	-
39	3379740		Support, Heater				$ 51.56
40	W11086533		Shield, Sound   (Replaces: 8573243)			Immediately	$ 31.30
41	8573951		Terminal Box				$ 6.33
42	300068		Cover Assembly Terminal Box				$ 30.14
50	WP3378128		Washer   (Replaces: 3378128)				$ 11.81
51	WP3400014		Screw   (Replaces: 3400014)				$ 8.24
52	3369138		Screw				$ 5.81
