SELECT A DIAGRAM

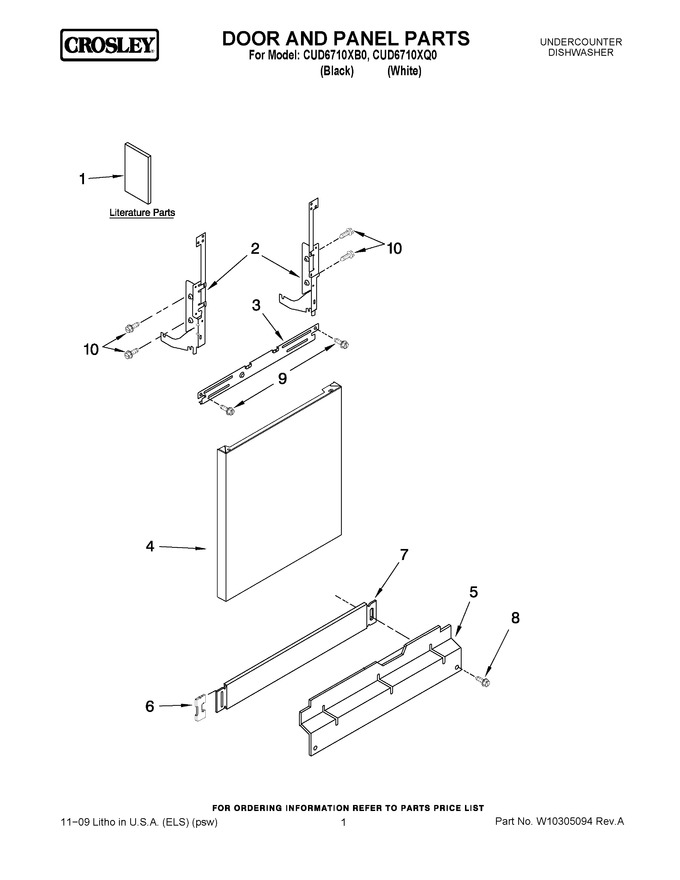

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10275468		Tech Sheet English/french		Appelez-nous	-
1	W10142914		Instructions, Installation		Appelez-nous	-
1	W10275157		Energy Guide		Appelez-nous	-
1	W10275150		Guide, Use & Care English/french		Appelez-nous	-
1	W10275151		Guide, Use & Care Spanish		Appelez-nous	-
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)			Immediately	$ 71.77
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 83.93
3	8268983		Stiffener, Door				$ 38.77
4	W10428852		Panel Front (white)   (Replaces: W10274846)				$ 364.33
4	W10301571		Panel Front (black)   (Replaces: W10274845)				$ 398.59
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
6	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
7	W10871196		Toe Panel (includes No.6) (black)   (Replaces: 8573286)				$ 174.04
7	WP8573287		Toe Panel (includes No.6) (white)   (Replaces: 8573287)				$ 177.69
8	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
8	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
9	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80

    View Diagram in Separate Window       Print Part List
