SELECT A DIAGRAM

02 - Air Flow And Control


03 - Unit


04 - Cabinet, Literature

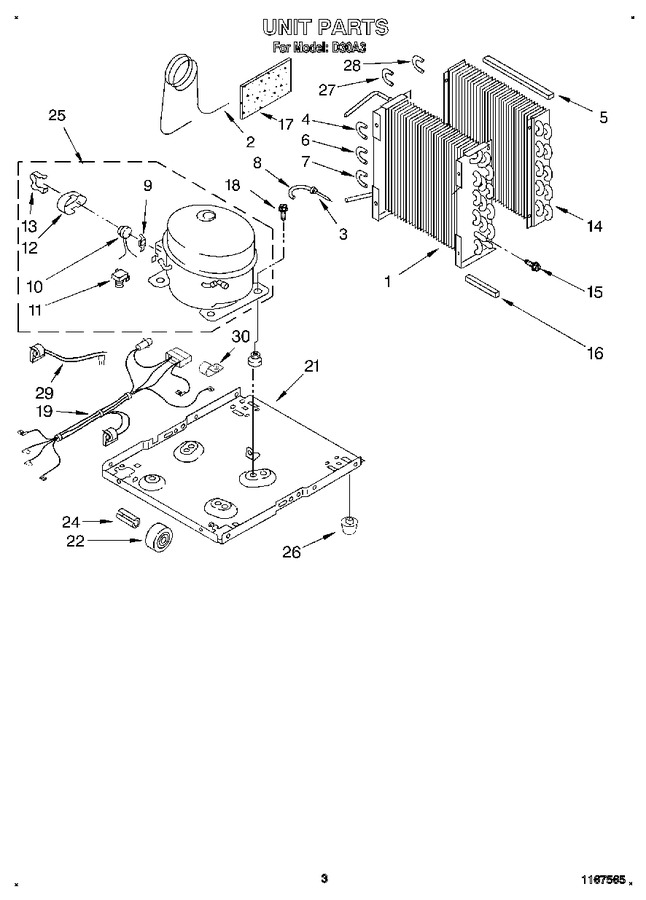

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162646		Condenser		Appelez-nous	-
2	1165297		Tube, Restrictor		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 84.42
4	1158407		Bend, Return (1)		Appelez-nous	-
5	1162348		Seal, Evaporator Top		Appelez-nous	-
6	708531		Bend, Return (8)		Appelez-nous	-
7	708532		Bend, Return (4)		Appelez-nous	-
8	1156533		Bend, Return (1)		Appelez-nous	-
9	950061		Spring, Overload		Appelez-nous	-
10	1164775		Overload, Protector		Appelez-nous	-
11	950058		Relay, Start		Appelez-nous	-
12	950055		Cover, Terminal		Appelez-nous	-
13	950056		Retainer, Cover		Appelez-nous	-
14	1168186		Evaporator		Appelez-nous	-
15	WP489069		Screw No.8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 8.40
16	1162372		Seal		Appelez-nous	-
17	1162650		Insulation, Restrictor Tube		Appelez-nous	-
18	1166034		Bolt, 1/4-28 X 1`` (4)		Appelez-nous	-
19	1167561		Harness, Wire		Appelez-nous	-
20	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
21	1157584		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
24	489015		Pin, Roller (2)		Appelez-nous	-
25	1164773		Compressor (complete Assembly)		Appelez-nous	-
26	951886		Glide (2)		Appelez-nous	-
27	855199		Bend, Return (8)		Appelez-nous	-
28	854624		Bend, Return (1)		Appelez-nous	-
29	1167574		Deicer, Bimetal		Appelez-nous	-
30	1180752		Relief, Strain		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
