02 - Air Flow And Control
03 - Unit, Lit/optional
04 - Cabinet
New Model Search:

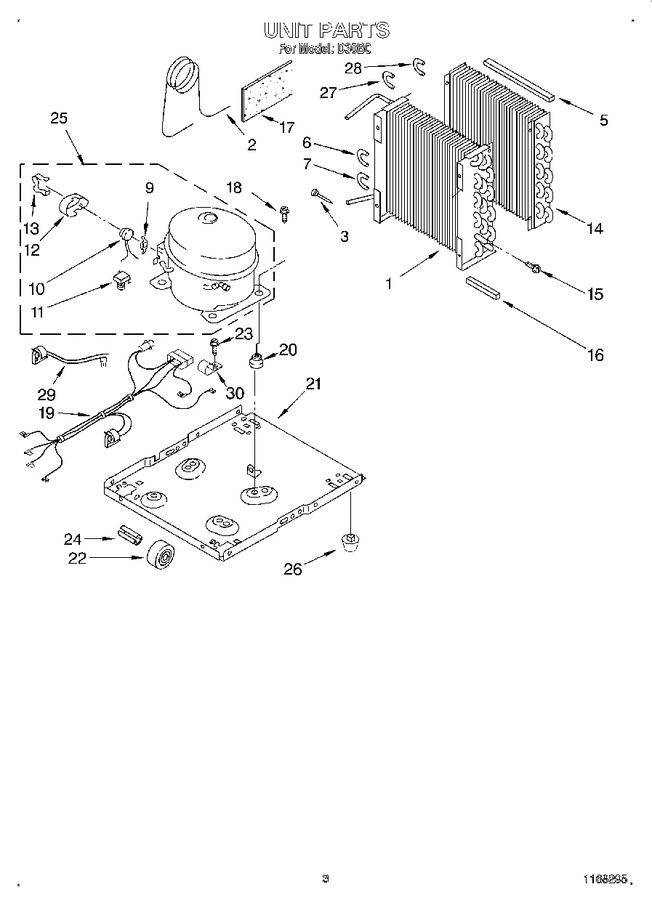

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1167546 | Condenser |
|
- | |||||
| 2 | 1168192 | Tube, Restrictor (42.0`` Length) |
|
- | |||||
| 3 | WP1162526 | Strainer (Replaces: 1162526) |
|
$ 84.42 | |||||
| 5 | 1162348 | Seal, Evaporator Top |
|
- | |||||
| 6 | 708531 | Bend, Return (10) |
|
- | |||||
| 7 | 708532 | Bend, Return (4) |
|
- | |||||
| 9 | 950061 | Spring, Overload |
|
- | |||||
| 10 | 1164775 | Overload, Protector |
|
- | |||||
| 11 | 950058 | Relay, Start |
|
- | |||||
| 12 | 950055 | Cover, Terminal |
|
- | |||||
| 13 | 950056 | Retainer, Cover |
|
- | |||||
| 14 | 1168186 | Evaporator |
|
- | |||||
| 15 | WP489069 | Screw No.8 X 1/2 (4) (Replaces: 488480) |
|
Immediately | $ 8.40 | ||||
| 16 | 1162372 | Seal |
|
- | |||||
| 17 | 1162650 | Insulation, Restrictor Tube |
|
- | |||||
| 18 | 1166034 | Bolt, 1/4-28 X 1`` (4) |
|
- | |||||
| 19 | 1167561 | Harness, Wire |
|
- | |||||
| 20 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 21 | 1157584 | Base |
|
- | |||||
| 22 | 998726 | Roller (2) |
|
- | |||||
| 23 | W11624204 | Screw No.8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 24 | 489015 | Pin, Roller (2) |
|
- | |||||
| 25 | 1164773 | Compressor (complete Assembly) |
|
- | |||||
| 26 | 951886 | Glide (2) |
|
- | |||||
| 27 | 855199 | Bend, Return (8) |
|
- | |||||
| 28 | 854624 | Bend, Return (1) |
|
- | |||||
| 29 | 1167574 | Deicer, Bimetal |
|
- | |||||
| 30 | 1180752 | Relief, Strain |
|
- | |||||
| LIT1167562 | Tech Sheet |
|
- | ||||||
| LIT1168295 | Repair Parts List |
|
- | ||||||
| WP978025 | 1/4`` Tube O.d. (Replaces: 978025) |
|
Immediately | $ 110.51 | |||||
| 505168 | Tape, No Drip Valve, Access |
|
- | ||||||
| 484310 | Epoxy, Tube (aluminum Repair) |
|
- | ||||||
| 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | ||||||
| WP16123 | Washer, Cap (condensate Pan) (Replaces: 647338) |
|
$ 8.16 | ||||||
| 646753 | Cap, Condensate Pan |
|
- | ||||||
| LIT1169993 | Use & Care Guide |
|
- | ||||||
| LIT1167573 | Wiring Diagram |
|
- | ||||||
| 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- | ||||||
| 978030 | 3/4`` Tube O.d. |
|
$ 137.25 | ||||||
| 978029 | 5/8`` Tube O.d. |
|
$ 93.85 | ||||||
| 978028 | 1/2`` Tube O.d. |
|
- | ||||||
| SF5538 | 3/8`` Tube O.d. (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978026 | 5/16``tube O.d. |
|
Immediately | $ 134.49 |
