Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

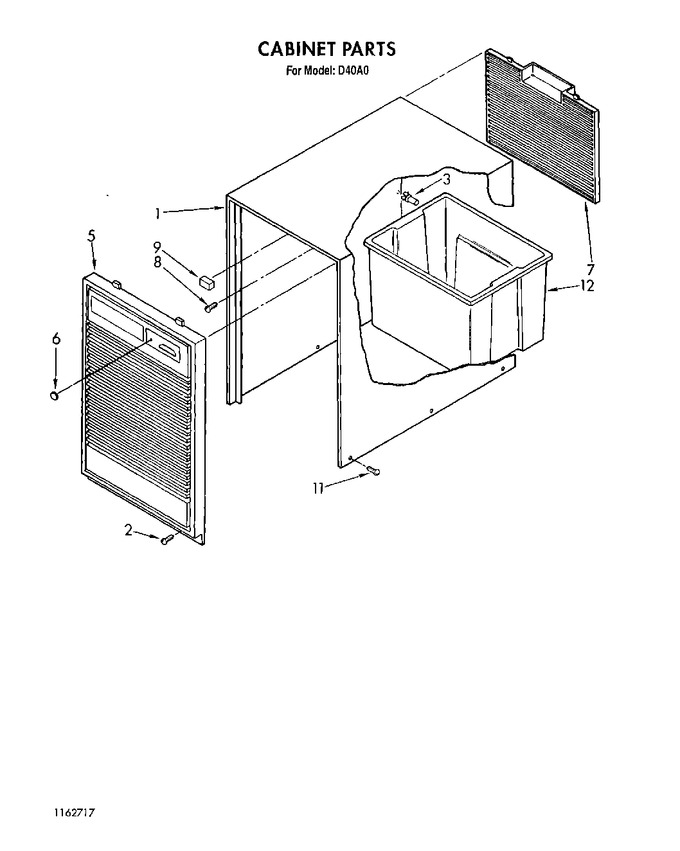

1	998821		Cabinet		Appelez-nous	-
2	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 489120)				$ 22.22
3	998813		Retainer, Pin (2) (rear Grille)		Appelez-nous	-
5	1162665		Grille, Front		Appelez-nous	-
6	998846		Lens, Light		Appelez-nous	-
7	998832		Grille, Rear		Appelez-nous	-
8	WP488729		Screw, Sm No.8 X 3/8   (Replaces: 489073)			Immediately	$ 8.28
9	948584		Spacer, Grille		Appelez-nous	-
11	1158781		Screw		Appelez-nous	-
12	WP16123		Washer, Condensate Pan   (Replaces: 647338)				$ 8.16
12	978029		5/8`` Tube O.d.				$ 93.85
12	978030		3/4`` Tube O.d.				$ 137.25
12	978865		Seal, Ring (access Valve) (20 - Pack)		Appelez-nous	-
12	212643		Permagum, Sealer (4 - 12`` Strips)			Immediately	$ 82.13
12	951901		Pan, Condensate				$ 80.76
12	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
12	646753		Cap, Condensate Pan		Appelez-nous	-
12	WP978025		1/4`` Tube O.d.   (Replaces: 978025)			Immediately	$ 110.51
12	799833		Epoxy, Tube (aluminum Repair)		Appelez-nous	-
12	505168		Tape, No Drip (30`) Valve, Access		Appelez-nous	-
12	978026		5/16``tube O.d.			Immediately	$ 134.49
12	SF5538		3/8`` Tube O.d.   (Replaces: 978027)				$ 21.64
12	978028		1/2`` Tube O.d.		Appelez-nous	-
	LIT1162717		List, Repair Parts		Appelez-nous	-
	LIT1160157		Manual, Owners		Appelez-nous	-
	LIT1157768		Diagram, Wiring		Appelez-nous	-
	LIT1162714		Sheet, Tech		Appelez-nous	-
