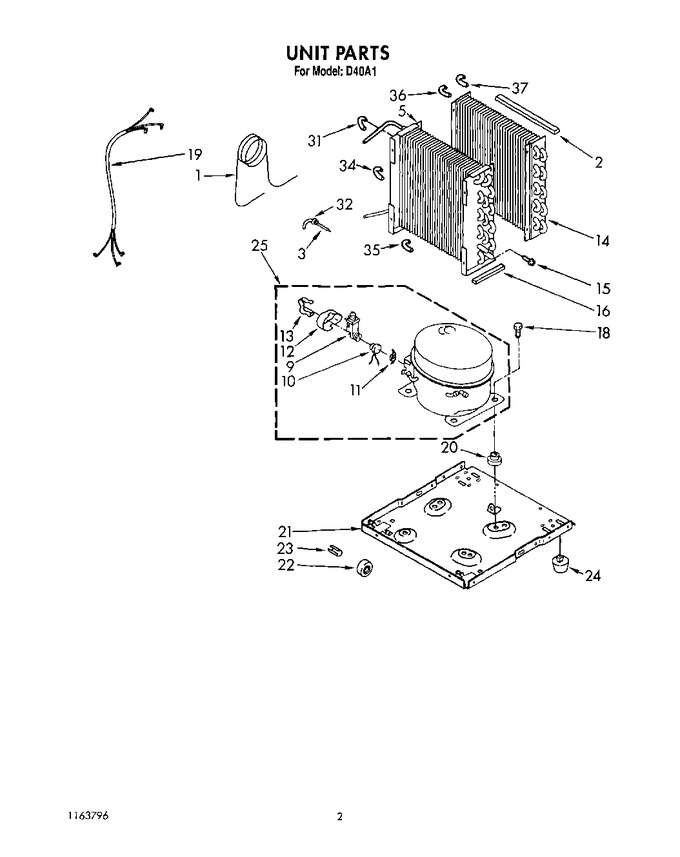

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162154		Tube, Restrictor (36.0`` Length)		Appelez-nous	-
2	1162348		Seal, Evaporator Top		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 84.42
5	1162646		Condenser		Appelez-nous	-
9	1156815		Relay (production)		Appelez-nous	-
9	876689		Relay (service)		Appelez-nous	-
10	1158823		Overload (production)		Appelez-nous	-
10	876686		Overload (service)		Appelez-nous	-
11	549086		Spring, Overload (service)		Appelez-nous	-
12	865086		Cover, Terminal (service)		Appelez-nous	-
12	1157582		Cover, Terminal (production)		Appelez-nous	-
13	831282		Retainer, Cover (service)		Appelez-nous	-
13	938384		Retainer, Cover (production)		Appelez-nous	-
14	1162933		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	1162372		Seal		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (3)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	1156748		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
23	489015		Roll Pin (2)		Appelez-nous	-
24	951886		Glide (2)		Appelez-nous	-
25	1156854		Compressor		Appelez-nous	-
31	1158407		Bend Return		Appelez-nous	-
32	708531		Bend, Return		Appelez-nous	-
34	708532		Bend, Return		Appelez-nous	-
35	1156533		Bend Return		Appelez-nous	-
36	855199		Bend, Return		Appelez-nous	-
37	854624		Bend, Return		Appelez-nous	-
