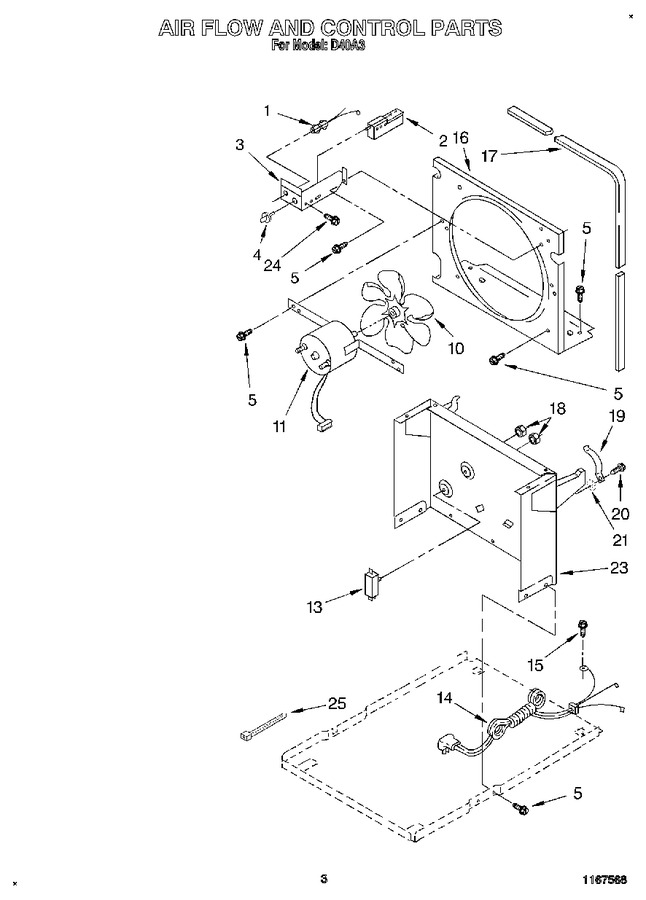

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1164804		Light, Indicator		Appelez-nous	-
2	1166055		Humidistat, Control				$ 80.72
3	1166850		Bracket, Control		Appelez-nous	-
4	1162670		Knob, Control (1)		Appelez-nous	-
5	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
10	949645		Blade, Fan		Appelez-nous	-
11	1164813		Motor, Fan		Appelez-nous	-
13	999747		Switch, Water Level Control		Appelez-nous	-
14	1164784		Cord, Appliance		Appelez-nous	-
15	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 8.85
16	1166838		Plate, Orifice		Appelez-nous	-
17	1162704		Seal		Appelez-nous	-
18	489001		Palnut, 3/8-32		Appelez-nous	-
19	1161718		Spring, Water Level		Appelez-nous	-
20	1166054		Screw No.8-18 X 5/8		Appelez-nous	-
21	489091		Washer, Repair (.045 Thickness)		Appelez-nous	-
21	489083		Washer, Repair (.030 Thickness)		Appelez-nous	-
21	489029		Washer, Repair (.060 Thickness)		Appelez-nous	-
23	1163800		Support		Appelez-nous	-
24	WP3177991		Screw, S.m.no.8 X 1/4   (Replaces: 1162513)			Immediately	$ 7.55
25	WPW10339879		Tie, Cable (3)   (Replaces: 602851)				$ 8.30

    View Diagram in Separate Window       Print Part List
