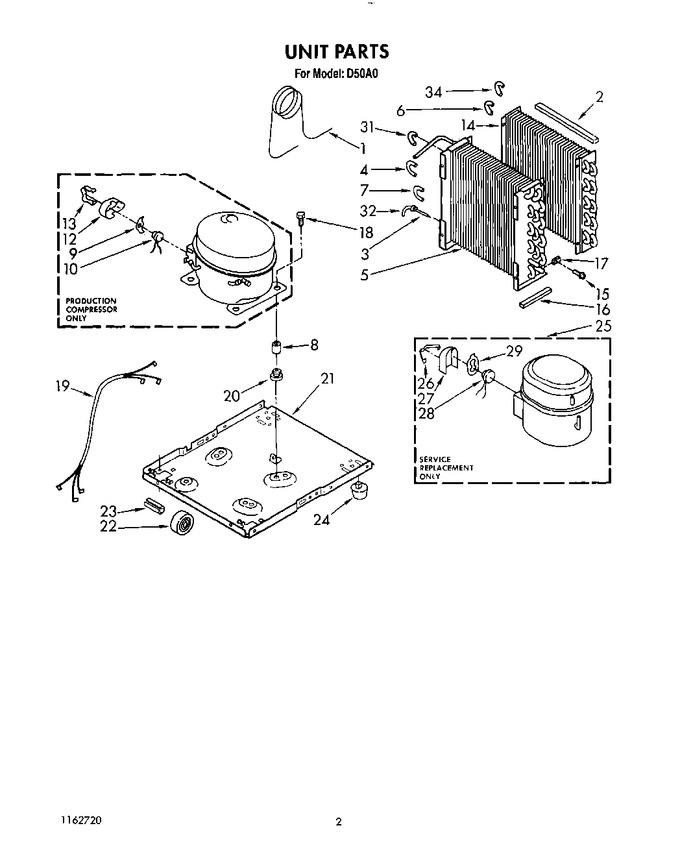

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162154		Tube, Restrictor (46.0`` Length)		Appelez-nous	-
2	1162348		Seal Evaporator		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 84.42
4	708531		Bend, Return		Appelez-nous	-
5	1162646		Condenser		Appelez-nous	-
6	1158407		Return Bend		Appelez-nous	-
7	708532		Return Bend		Appelez-nous	-
8	646498		Sleeve (4)		Appelez-nous	-
9	950061		Spring, Overload		Appelez-nous	-
10	951312		Overload, Protector		Appelez-nous	-
12	950055		Cover, Terminal		Appelez-nous	-
13	950056		Retainer, Cover		Appelez-nous	-
14	1161199		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	1162372		Seal		Appelez-nous	-
17	488660		Nut, No.8 (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (3)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	646499		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
23	489015		Roll Pin (2)		Appelez-nous	-
24	951886		Glide (2)		Appelez-nous	-
25	1162658		Compressor, Service (complete Assembly)		Appelez-nous	-
26	643299		Retainer, Cover		Appelez-nous	-
27	589230		Cover, Terminal		Appelez-nous	-
28	643295		Overload		Appelez-nous	-
29	798469		Spring, Overload		Appelez-nous	-
31	855199		Bend, Return		Appelez-nous	-
32	854624		Bend, Return		Appelez-nous	-
34	1156533		Return, Bend		Appelez-nous	-
