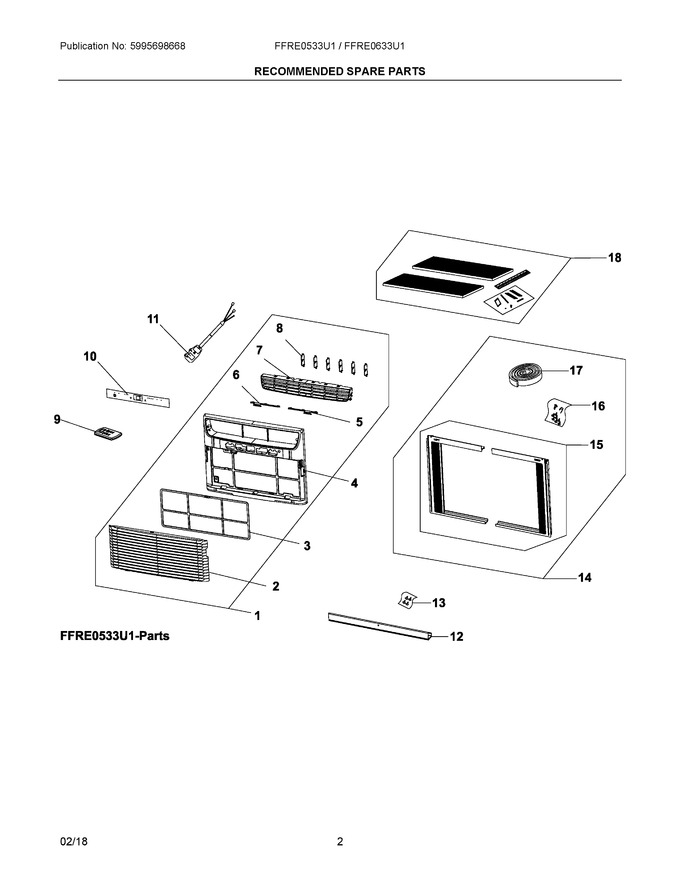

02 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304515935		Front Panel, Assembly, W/filter		Appelez-nous	-
2	5304515936		Panel, Front Grille, Air Intake		Appelez-nous	-
3	5304515937		Filter, Air, Plastic Frame		Appelez-nous	-
4	5304515938		Frame, Front Assembly		Appelez-nous	-
5	5304515939		Lever, Louver, Rh		Appelez-nous	-
6	5304515940		Lever, Louver, Lh		Appelez-nous	-
7	5304515941		Louver, Horizontal		Appelez-nous	-
8	5304515942		Louver, Vertical		Appelez-nous	-
9	5304515943		Remote Control				$ 114.22
10	5304515944		Overlay, Control		Appelez-nous	-
11	5304515994		Power Cord, Assembly   (Replaces: 5304515945)		Appelez-nous	-
12	5304515720		Rail, Shutter Track, Top		Appelez-nous	-
13	5304459961		Screw, Self-tapping, 4.2 X 9.5		Appelez-nous	-
14	5304515946		Installation Kit, Complete		Appelez-nous	-
15	5304515723		Window Filler Kit, Slider Panels		Appelez-nous	-
16	5304515724		Hardware Kit, Mounting, Screws/locks		Appelez-nous	-
17	5304459375		Seal, Thick, Foam, Window Sash		Appelez-nous	-
18	5304515947		Insulation Kit, Heat, R1		Appelez-nous	-
