SELECT A DIAGRAM
01 - Cover Sheet

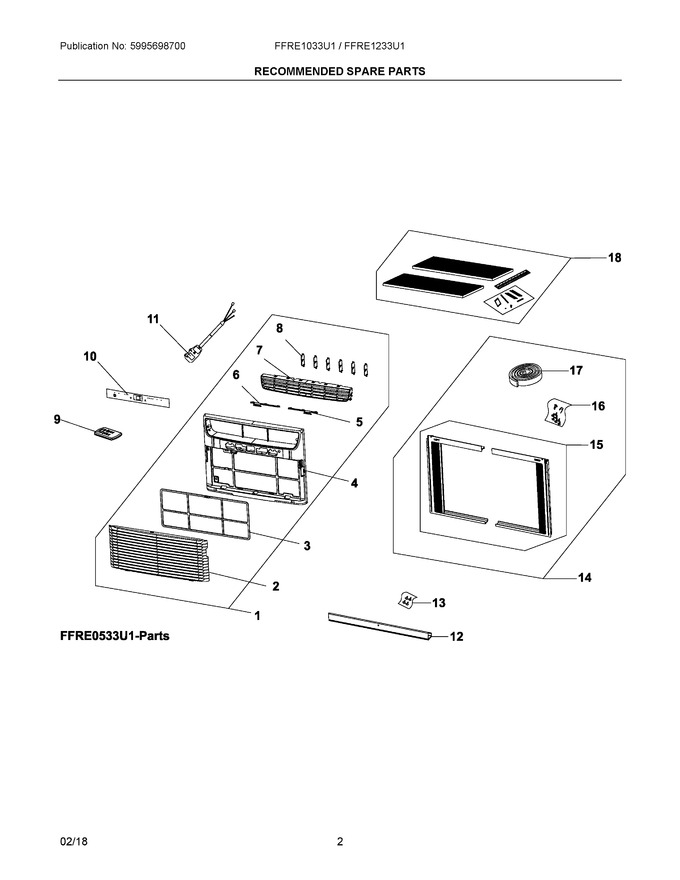

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304515971 | Front Panel, Assembly, W/filter |
|
- | |||||
| 2 | 5304515972 | Panel, Front Grille, Air Intake |
|
- | |||||
| 3 | 5304515973 | Filter, Air, Plastic Frame |
|
- | |||||
| 4 | 5304515974 | Frame, Front Assembly |
|
- | |||||
| 5 | 5304515975 | Lever, Louver, Rh |
|
- | |||||
| 6 | 5304515976 | Lever, Louver, Lh |
|
- | |||||
| 7 | 5304515977 | Louver, Horizontal |
|
- | |||||
| 8 | 5304515942 | Louver, Vertical |
|
- | |||||
| 9 | 5304515943 | Remote Control |
|
$ 114.22 | |||||
| 10 | 5304515978 | Overlay, Control |
|
- | |||||
| 11 | 5304515970 | Power Cord, Assembly |
|
- | |||||
| 12 | 5304515979 | Rail, Shutter Track, Top |
|
- | |||||
| 13 | 5304515721 | Screw Kit, Top Rail |
|
- | |||||
| 14 | 5304515980 | Installation Kit, Complete |
|
- | |||||
| 15 | 5304515981 | Window Filler Kit, Slider Panels |
|
- | |||||
| 16 | 5304515982 | Hardware Kit, Mounting, Screws/locks |
|
- | |||||
| 17 | 5304459377 | Seal, Thin, Foam, Window Sash |
|
- | |||||
| 18 | 5304515947 | Insulation Kit, Heat, R1 |
|
- |
