01 - Cover Sheet

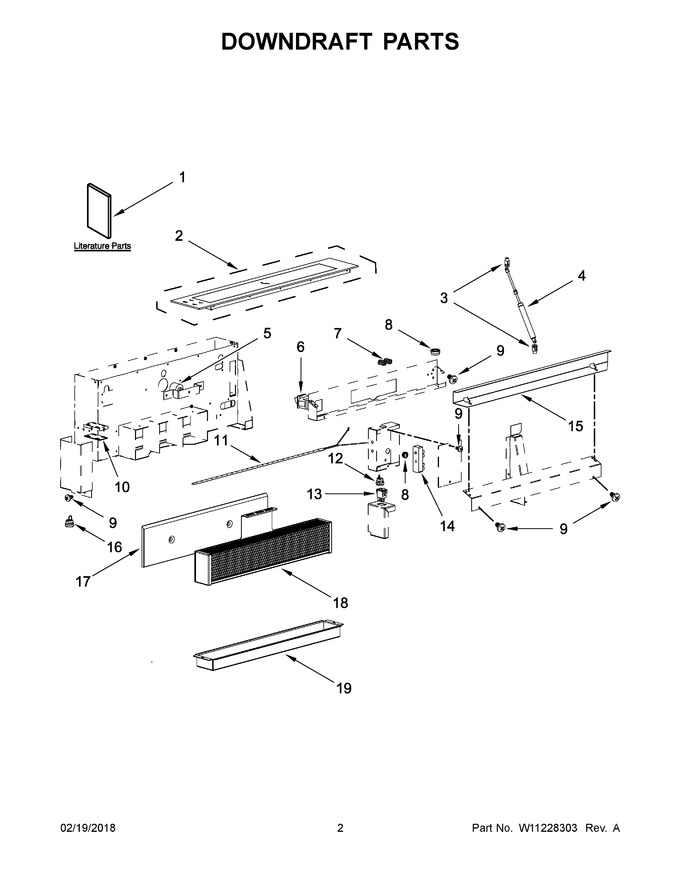

02 - Downdraft Parts


03 - Blower And Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11170792		Installation Instructions		Appelez-nous	-
2	W11226883		Assembly, Door		Appelez-nous	-
3	W11226888		Bracket, Strut				$ 128.85
4	W11226892		Strut, Gas				$ 333.96
5	W11226896		Solenoid				$ 296.47
6	W11227397		Switch, Solenoid				$ 225.89
7	W11111293		Spring, Valve				$ 13.77
8	W11227427		Bushing		Appelez-nous	-
9	W10626012		Screw		Appelez-nous	-
10	W11227466		Pcba, Control				$ 370.66
11	W11228219		Light Strip, Led   (Replaces: W11227465)		Appelez-nous	-
12	W10618504		Relief, Strain				$ 33.68
13	W11227469		Switch, Led Light		Appelez-nous	-
14	W11227461		Block, Terminal		Appelez-nous	-
15	W11227394		Bracket, Downdraft Bridge		Appelez-nous	-
16	W11227463		Relief, Strain		Appelez-nous	-
17	W11227464		Panel, Glass Light		Appelez-nous	-
18	W11228634		Filter, Grease		Appelez-nous	-
19	W11227462		Tray, Grease		Appelez-nous	-
1A	W11170798		Use And Care Guide		Appelez-nous	-
NI	W11227460		Harness, Low Volt				$ 420.71
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11227459		Harness, Internal Low Volt				$ 257.39
NI	W11227435		Harness, Main				$ 277.39
NI	W11227456		Harness, Internal Main				$ 216.98
NI	W11227455		Harness, Blower Motor				$ 239.31
NI	W11229251		Hardware, Installation		Appelez-nous	-
