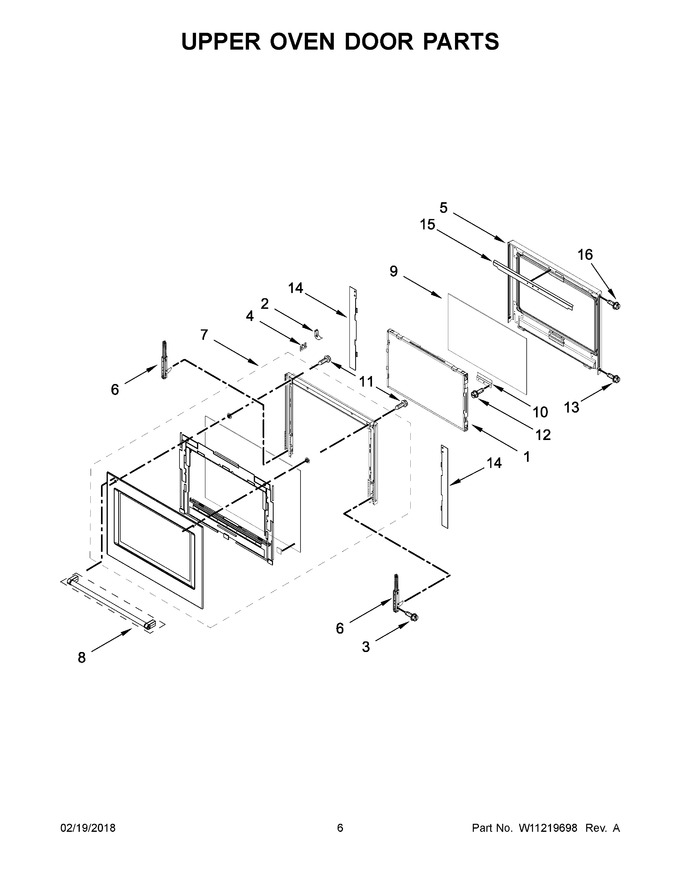

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10347597		Assembly, Window Pack   (Replaces: W10347597)				$ 294.07
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 165.76
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
4	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 176.14
5	WPW10320793		Assembly, Liner   (Replaces: W10320793)				$ 337.34
6	W11642291		Hinge, Door   (Replaces: W10639067)				$ 83.24
7	W10774423		Assembly, Door (stainless)   (Replaces: W10615245)				$ 1,044.61
8	W11525064		Assembly, Handle (stainless)   (Replaces: W10640874)				$ 238.98
9	W10829001		Glass, Inner   (Replaces: W10678525)				$ 208.55
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 163.86
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.85
14	W10687815		Extension, Side Rail (left)				$ 71.68
15	W10669415		Shield, Door Liner				$ 69.55
16	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 7.55
14A	W10687814		Extension, Side Rail (right)				$ 71.68
