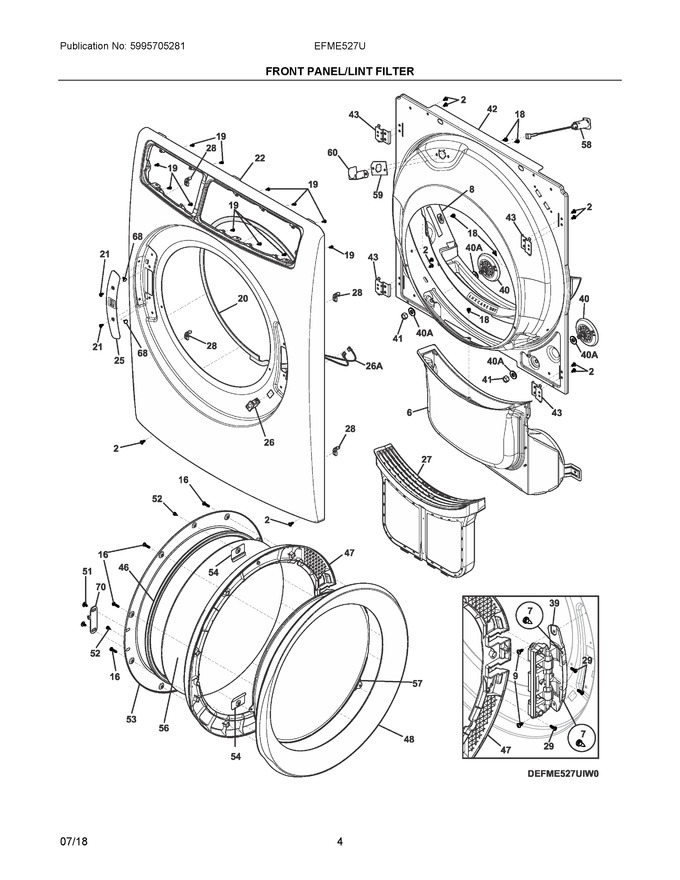

03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 15.75 | ||||
| 6 | 5304505353 | Duct Assembly, Air, W/foam Top Seal |
|
$ 173.50 | |||||
| 7 | 137285100 | Screw, Pan Head, #8-18x.750 |
|
$ 19.48 | |||||
| 8 | 5304534450 | Grill Assembly, Lint, W/moisture Sens (Replaces: 5304515377) |
|
Immediately | $ 163.95 | ||||
| 9 | 5304505259 | Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4) |
|
Immediately | $ 18.26 | ||||
| 16 | 137087000 | Screw, Comb Pnhd B, #10-16x.75, (9) |
|
Immediately | $ 12.60 | ||||
| 18 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 15.75 | ||||
| 19 | 5304505441 | Screw, Pph B, 6-20x.375 |
|
$ 7.23 | |||||
| 20 | 5304505111 | Gasket, Foam, Front Panel |
|
$ 91.01 | |||||
| 21 | 131303300 | Screw, Pan Head, 10-16ab X 0.500, Locking |
|
- | |||||
| 22 | 5304513563 | Panel, Dryer Front, White |
|
Immediately | $ 270.70 | ||||
| 25 | 5304513568 | Latch Assembly, Door, W/cover |
|
Immediately | $ 31.59 | ||||
| 26 | 134813663 | Switch, Door, White |
|
Immediately | $ 67.53 | ||||
| 27 | STOP MORE INFO RE | Filter Assembly, Lint, Clamshell (Replaces: 5304513574) |
|
- | |||||
| 28 | 137034500 | Clip, Mounting, Cabinet Front |
|
$ 48.04 | |||||
| 29 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 15.75 | ||||
| 39 | 5304505133 | Hinge Assembly, Nest |
|
$ 201.88 | |||||
| 40 | 5304523155 | Roller, Wheel, Complete Asmy (Replaces: 134715900) |
|
Immediately | $ 86.65 | ||||
| 41 | 134716800 | Nut, 3/8-16 |
|
$ 3.31 | |||||
| 42 | 5304505121 | Bulkhead, Front, White |
|
$ 242.96 | |||||
| 43 | 5304505118 | Bracket, Bulkhead, (4) |
|
$ 16.07 | |||||
| 46 | 5304505010 | Gasket, Door Seal, Inner |
|
Immediately | $ 109.40 | ||||
| 47 | 5304505115 | Frame, Inner Door |
|
$ 191.98 | |||||
| 48 | 5304505388 | Frame, Outer, Chromed, Door |
|
$ 307.13 | |||||
| 51 | 137241000 | Screw, Quad Ph, 10-16 X 0.375 |
|
$ 11.81 | |||||
| 52 | 131243700 | Screw, Ph, 8-18ab X 0.375 (Replaces: 134529600) |
|
$ 3.73 | |||||
| 53 | 5304504995 | Inner Door, Ring, Metal |
|
$ 225.72 | |||||
| 54 | 5304505012 | Clamp, Door Glass, (2) |
|
Immediately | $ 20.88 | ||||
| 56 | 5304504999 | Glass, Dryer Door, Black |
|
Immediately | $ 185.66 | ||||
| 57 | 5304505119 | Shield, Heat, Door |
|
Immediately | $ 130.94 | ||||
| 58 | 5304521399 | Lamp Assembly, Drum, W/harness (Replaces: 5304505252) |
|
$ 108.98 | |||||
| 59 | 5304505406 | Gakset, Lamp |
|
$ 81.11 | |||||
| 60 | 137611700 | Bracket, Support, Drum Lamp |
|
$ 14.46 | |||||
| 68 | 134742000 | Plug, Hinge Hole, White |
|
$ 12.05 | |||||
| 70 | 5304536127 | Striker, Latch, Black (Replaces: 5304505013) |
|
Immediately | $ 20.56 | ||||
| 26A | 5304505258 | Harness, Wiring, Door Lock |
|
$ 49.32 | |||||
| 40A | 134716700 | Washer, Flat |
|
$ 2.36 | |||||
| NIA | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 66.94 | ||||
| NIA | 5304513601 | Screw, Grill Assembly, (2) |
|
$ 14.46 | |||||
| NIA | 134716200 | Retainer, Roller Wheel, Assembly |
|
$ 3.47 |
