View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel

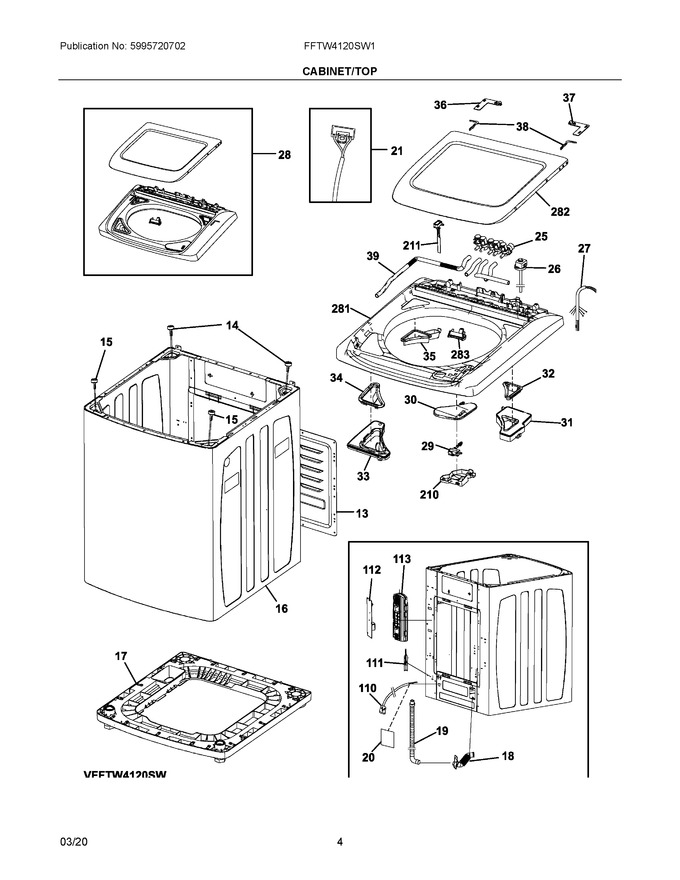

03 - Cabinet/top
04 - Motor/tub
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 5304511327 | Cover, Rear |
|
$ 57.93 | |||||
| 14 | 5304511328 | Suspension, Assembly, Rear |
|
Immediately | $ 57.35 | ||||
| 15 | 5304511329 | Suspension, Assembly, Front |
|
Immediately | $ 57.35 | ||||
| 16 | 5304511330 | Cabinet, Assembly, White |
|
$ 268.21 | |||||
| 17 | 5304538423 | Base Assembly, Cabinet (Replaces: 5304511331) |
|
- | |||||
| 18 | 5304515611 | Hose, Assembly, Middle |
|
$ 71.04 | |||||
| 19 | 5304516129 | Drain Hose, Assembly |
|
Immediately | $ 71.96 | ||||
| 20 | 5304518639 | Bag, Insulating |
|
- | |||||
| 21 | 5304520868 | Switch, Lid Safety |
|
$ 52.92 | |||||
| 25 | 5304536496 | Valve, Water Inlet (Replaces: 5304511334) |
|
Immediately | $ 175.48 | ||||
| 26 | 5304511335 | Sensor Assembly, Water Level |
|
Immediately | $ 68.39 | ||||
| 27 | 5304511336 | Harness, Wiring, Main |
|
$ 245.02 | |||||
| 28 | 5304537360 | Top Assembly, White, W/lid & Nozzle (Replaces: 5304511337) |
|
$ 534.65 | |||||
| 29 | 5304511338 | Lock Assemby, Lid |
|
Immediately | $ 125.88 | ||||
| 30 | 5304518642 | Cover, Lid Lock Assy |
|
$ 46.91 | |||||
| 31 | 5304520585 | Dispenser Assy, Fabric Softener (Replaces: 5304518641) |
|
$ 50.61 | |||||
| 32 | 5304518640 | Cover, Dispenser, Fabric Softener |
|
$ 13.05 | |||||
| 33 | 5304518643 | Dispenser Assy, Detergent |
|
$ 46.46 | |||||
| 34 | 5304518644 | Cover, Dispenser, Detergent |
|
$ 12.55 | |||||
| 35 | 5304518648 | Dispenser Assy, Bleach, W/cover |
|
$ 13.05 | |||||
| 36 | 5304518646 | Cover, Lid Hinge, Lh |
|
$ 10.85 | |||||
| 37 | 5304518647 | Cover, Lid Hinge, Rh |
|
- | |||||
| 38 | 5304518645 | Hinge, Lid, (2), Axis |
|
$ 21.20 | |||||
| 39 | 5304518649 | Hose Assembly, Inlet |
|
$ 132.62 | |||||
| 110 | 5304511339 | Power Cord, Assembly |
|
Immediately | $ 74.47 | ||||
| 111 | 5304511340 | Capacitor, Assembly |
|
$ 132.30 | |||||
| 112 | 5304511341 | Board, Printed Circuit, Main |
|
Immediately | $ 333.70 | ||||
| 113 | 5304511342 | Box, Electrical Assy |
|
Immediately | $ 49.59 | ||||
| 210 | 5304511343 | Box, Lid Lock |
|
$ 19.36 | |||||
| 211 | 5304511344 | Switch, Impact |
|
Immediately | $ 71.81 | ||||
| 281 | 5304536315 | Top, Assembly, White (Replaces: 5304511345) |
|
$ 266.09 | |||||
| 282 | 5304536315 | Lid, Assembly, White, W/window (Replaces: 5304511346) |
|
$ 266.09 | |||||
| 283 | 5304511347 | Nozzle, Assembly, Tub Fill |
|
$ 59.85 |
