SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts

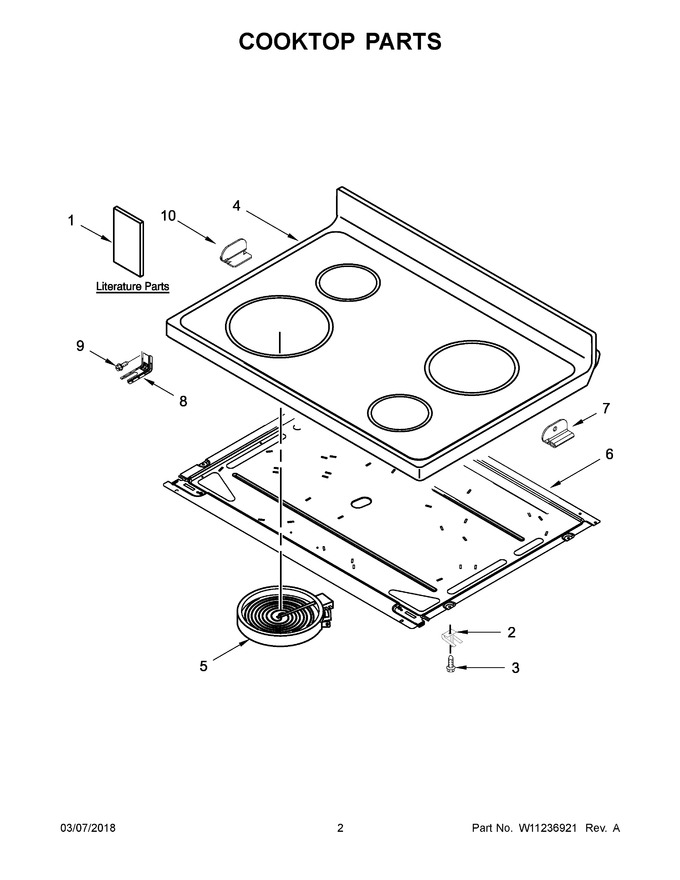

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11047692		Installation Instructions		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
4	W10248202		Cooktop (white)   (Replaces: W10202165)				$ 603.76
5	WPW10242957		Element, Surface (2000 Watt (left Front And Right Rear))   (Replaces: W10242957)				$ 332.00
6	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
7	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
9	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
10	W10607641		Bracket, Cooktop (left)				$ 33.52
1A	W11163995		Use And Care Guide		Appelez-nous	-
1B	W10384447		Tech Sheet (english)		Appelez-nous	-
1C	W10384462		Tech Sheet (french)		Appelez-nous	-
5A	WP8523045		Element, Surface (1500/1700 Watt (right Front And Left Rear))   (Replaces: 8523045)				$ 314.18
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11171875		Harness, Wire (main)   (Replaces: W10251766)		Appelez-nous	-
NI	W10844297		Harness, Wire (cooktop Left)		Appelez-nous	-
NI	W10844299		Harness, Wire (cooktop Right)		Appelez-nous	-
NI	W11172424		Harness, Sensor   (Replaces: W10083650)				$ 113.78
NI	3184020		Wire, Ground   (Replaces: 8523279)				$ 86.92
NI	313660		Clip, Ground Wire		Appelez-nous	-
NI	W11244557		Screw   (Replaces: 3196173)				$ 14.29
NI	WPW10144763		Tie, Cable   (Replaces: W10144763)				$ 7.93

    View Diagram in Separate Window       Print Part List
