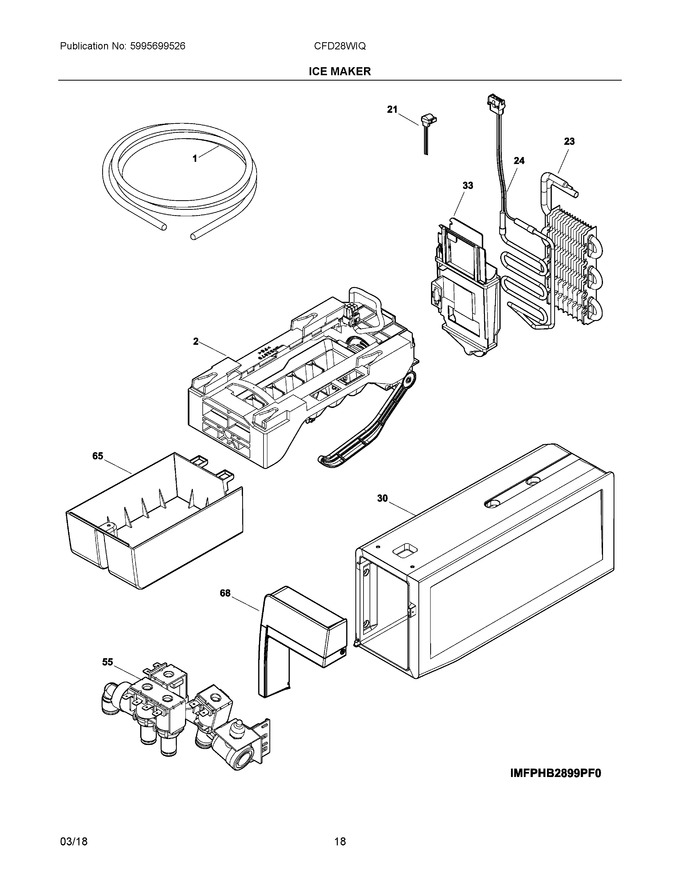

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water, 5/16-42", Yellow, Valve To, Back Connector (Replaces: 218976434) |
|
Immediately | $ 9.45 | ||||
| 2 | 243297613 | Ice Maker, Complete, 115 V (Replaces: 243297606) |
|
Immediately | $ 130.73 | ||||
| 21 | 5303918568 | Thermostat-defrost, Defrost, Icemaker Evap |
|
$ 101.59 | |||||
| 23 | 242094603 | Evaporator, Ice Maker |
|
$ 153.41 | |||||
| 24 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 30 | 242142203 | Cover, Icmkr & Bucket |
|
$ 239.77 | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 271.94 | ||||
| 65 | 808456301 | Cover, Wiring |
|
$ 83.79 | |||||
| 68 | 242095002 | Cover, -front, Bucket Trim |
|
$ 105.36 | |||||
| 23A | 5303918567 | Evaporator Kit |
|
Immediately | $ 343.98 | ||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIA | 242096001 | Insulation, I/container Frt |
|
$ 21.91 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow (Replaces: 242200101) |
|
$ 11.81 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 15.17 |
