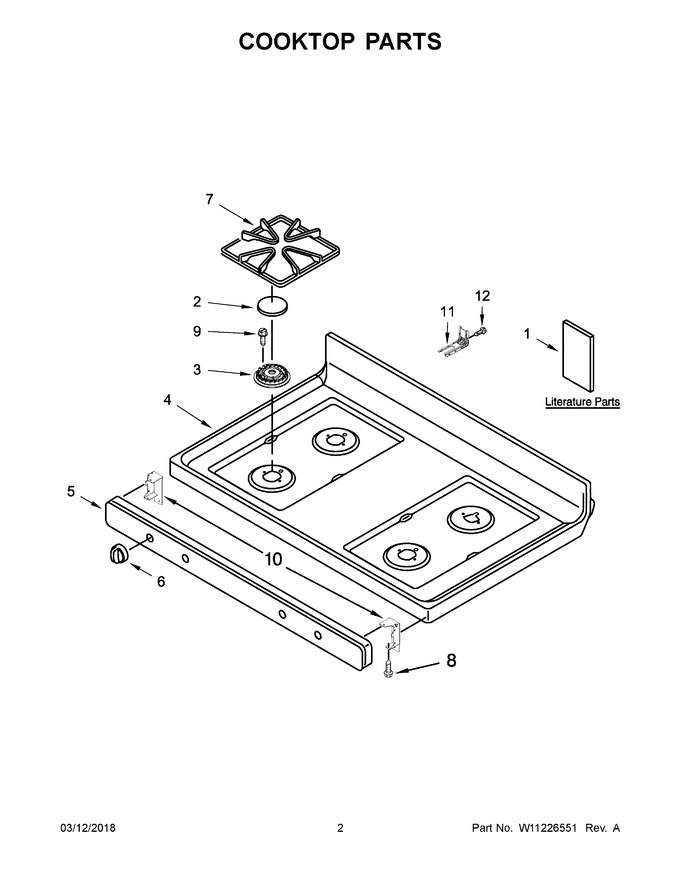

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11122558		Instructions, Installation		Appelez-nous	-
2	W11229638		Set, Burner Cap (black)   (Replaces: W11179394)				$ 105.80
3	WPW10515455		Assembly, Burner (17.5k) (left Front)   (Replaces: W10515455)				$ 112.47
4	W11133661		Cooktop (black)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 176.18
6	WPW10200193		Knob, Control (black)   (Replaces: W10200193)				$ 24.18
7	WPW10268483		Kit, Grate (black)   (Replaces: 8053580)				$ 140.02
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
12	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W11122566		Owners Manual		Appelez-nous	-
1B	W10538793		Sheet, Tech (english)		Appelez-nous	-
1C	W10538794		Sheet, Tech (french)		Appelez-nous	-
3A	WPW10515454		Assembly, Burner (9.5k) (left Rear & Right Front)   (Replaces: W10515454)				$ 115.74
3B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 99.29
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10797422		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 216.55
NI	W10809927		Harness, Cooktop				$ 160.90
NI	3196896		Clip, Wire		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	W11244557		Screw   (Replaces: 3196173)				$ 14.29
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
