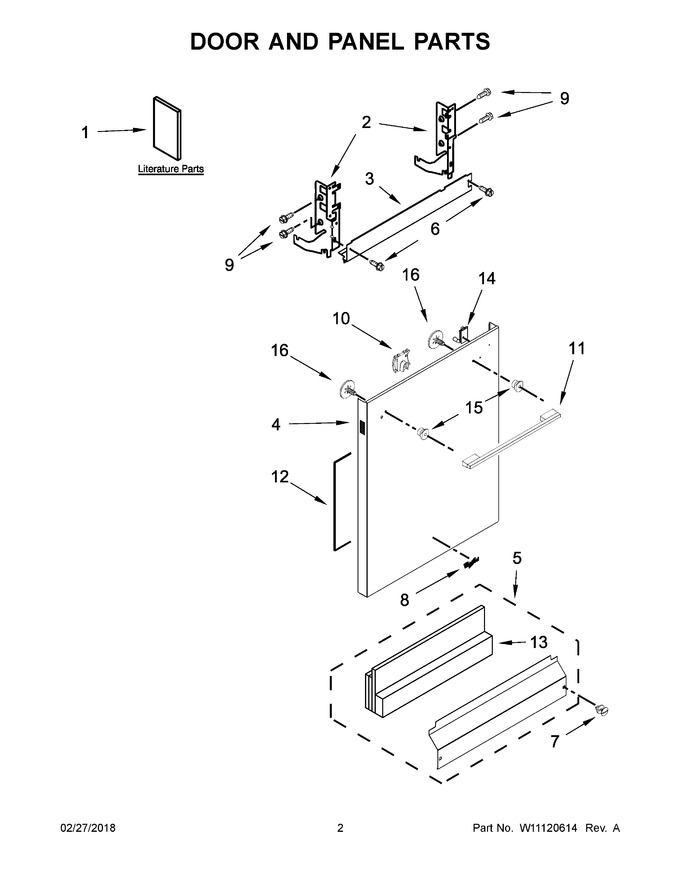

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10806906 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Barrier, Vapor (Replaces: W10844384) |
|
Immediately | $ 32.88 | ||||
| 4 | W11120210 | Panel, Front (includes 8, 10 & 14) (bronze) (Replaces: W10871247) |
|
$ 398.38 | |||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10526114) |
|
Immediately | $ 149.53 | ||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 7 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 30.39 | ||||
| 8 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 9 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 10 | W10692757 | Barrel Nut, Front Panel |
|
$ 16.01 | |||||
| 11 | W10907188 | Handle Assembly (stainless) (Replaces: W10874349) |
|
$ 101.77 | |||||
| 12 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 13 | W10831329 | Insulation, Four Layer (Replaces: W10518815) |
|
Immediately | $ 43.30 | ||||
| 14 | W10901145 | Light Pipe (Replaces: W10854504) |
|
$ 77.23 | |||||
| 15 | W11157086 | Stud, Mounting (Replaces: W11049903) |
|
Immediately | $ 8.87 | ||||
| 16 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 1A | W10900103 | Energy Guide |
|
- | |||||
| 1B | W10901523 | Use & Care Guide |
|
- | |||||
| 1C | W10837602 | Tech Sheet, English |
|
- | |||||
| 1D | W10837603 | Tech Sheet, French |
|
- | |||||
| 1E | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 |
