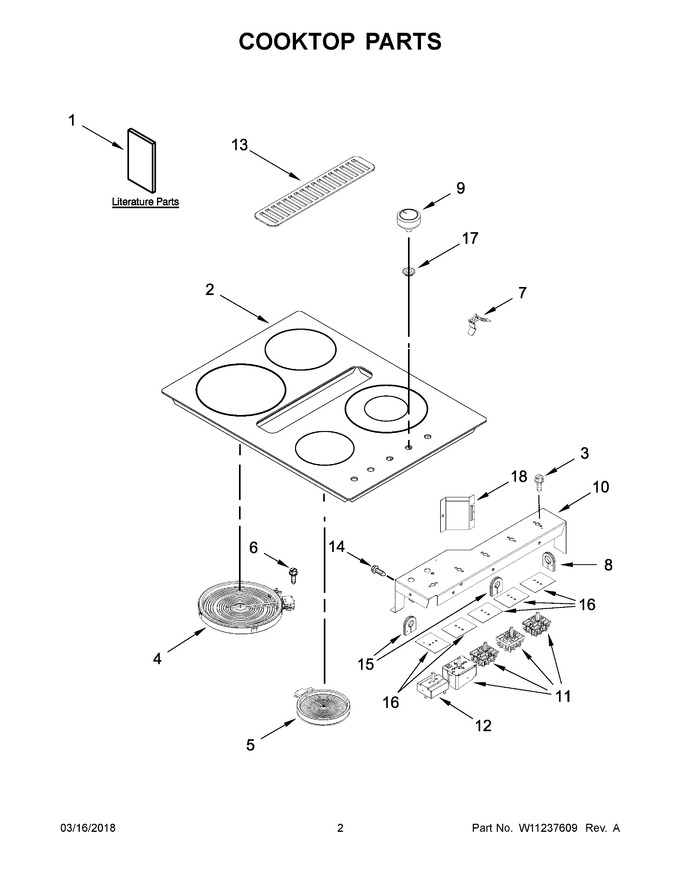

02 - Cooktop Parts
03 - Blower Unit Parts
04 - Burner Box Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10848428 | Instructions, Installation |
|
- | |||||
| 2 | W11051484 | Top (black) (Replaces: W10796748) |
|
$ 920.28 | |||||
| 3 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 4 | WPW10251108 | Element (3200w) (left Front) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 5 | W11171119 | Element (1200w) (right Front) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 7 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 8 | W10324729 | Grommet, Wire (gray) (large Hole) |
|
$ 9.03 | |||||
| 9 | W11084158 | Knob, Control (stainless) (Replaces: W10884728) |
|
Immediately | $ 25.20 | ||||
| 10 | W10815302 | Bracket, Switch |
|
$ 85.71 | |||||
| 11 | W10917724 | Switch, Infinite (left Front & Left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 12 | W11690658 | Switch, Blower (Replaces: W10866567) |
|
Immediately | $ 67.33 | ||||
| 13 | WPW10205094 | Grille, Air (black) (Replaces: W10205094) |
|
$ 255.44 | |||||
| 14 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 15 | 8008P068-60 | Grommet, Wire (black) (small Hole) |
|
$ 16.79 | |||||
| 16 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 17 | W10853046 | Bezel, Knob (stainless) (Replaces: W10593536) |
|
Immediately | $ 74.53 | ||||
| 18 | W10912406 | Shield, Heat |
|
- | |||||
| 11A | W10911303 | Switch, Infinite (right Front) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 11B | W10857622 | Switch, Infinite (right Rear) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 1A | W10848424 | Instructions, User |
|
- | |||||
| 1B | W10917804 | Sheet, Tech |
|
- | |||||
| 1C | W11026765 | Diagram, Wiring |
|
- | |||||
| 2A | W11051485 | Top (stainless Model Includes Trim) (Replaces: W10796749) |
|
$ 1,020.76 | |||||
| 4A | W11517959 | Element (3000/1400w) (right Rear) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 5A | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 117.41 | ||||
| NI | W11465762 | Harness, Jumper (Replaces: W11190480) |
|
$ 33.38 | |||||
| NI | W11190478 | Harness, Blower |
|
$ 118.30 | |||||
| NI | W11190475 | Harness, Cooktop |
|
$ 343.88 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WP71001171 | Screw, Grounding (Replaces: 7101P460-60) |
|
$ 7.30 | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | W10909126 | Kit, Plenum Screw |
|
Immediately | $ 22.14 |
