Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10806908 Installation Instructions Appelez-nous -
2 W11806566 Arm, Hinge (left Hand)   (Replaces: W10274922) In-Stock Immediately $ 71.77

3 W10850371 Stiffener, Door   (Replaces: W10803537) In-Stock Immediately $ 32.88

4 WPW10274895 Panel Front (black)   (Replaces: W10274895) Special Order $ 409.86

5 W10827631 Access Panel (black)   (Replaces: W10799402) In-Stock Immediately $ 195.64

6 W11126003 Insulation, Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

7 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93

8 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

9 W10831329 Insulation, Toe Panel   (Replaces: W10519755) In-Stock Immediately $ 43.30

10 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

1A W11046216 Energy Guide Appelez-nous -
1B W10644344 Use & Care Guide Appelez-nous -
1C W10849767 Tech Sheet, English Appelez-nous -
1D W10849768 Tech Sheet, French Appelez-nous -
2A W11613572 Arm, Hinge (right Hand)   (Replaces: W10274921) In-Stock Immediately $ 83.93

4A WPW10274896 Panel Front (white)   (Replaces: W10274896) Special Order $ 362.51

4B WPW10274897 Panel Front (biscuit/bisque)   (Replaces: W10274897) Special Order $ 359.49

4C WPW10274902 Panel Front (stainless)   (Replaces: W10274902) In-Stock Immediately $ 408.40

4D WPW10274898 Panel Front (universal Silver)   (Replaces: W10274898) Special Order $ 399.38

5A W10827632 Access Panel (white)   (Replaces: W10799403) In-Stock Immediately $ 163.70

5B W10799404 Access Panel (biscuit/bisque) Special Order $ 171.60

8A WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

8B WPW10503550 Fastener (biscuit/bisque)   (Replaces: W10503550) Special Order $ 29.00


    View Diagram in Separate Window     Print Icon   Print Part List

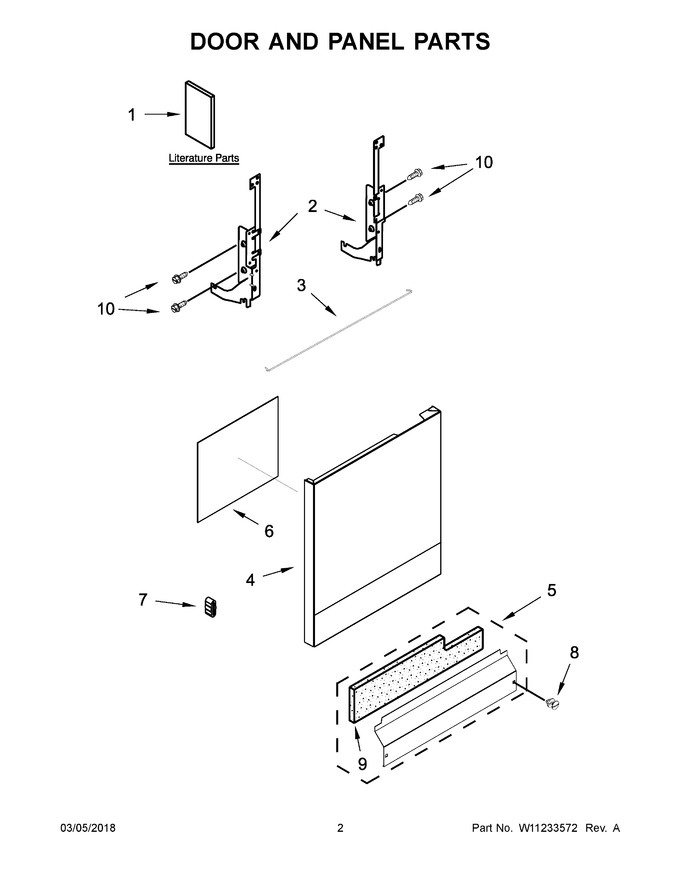

Diagram for WDF330PAHD2
