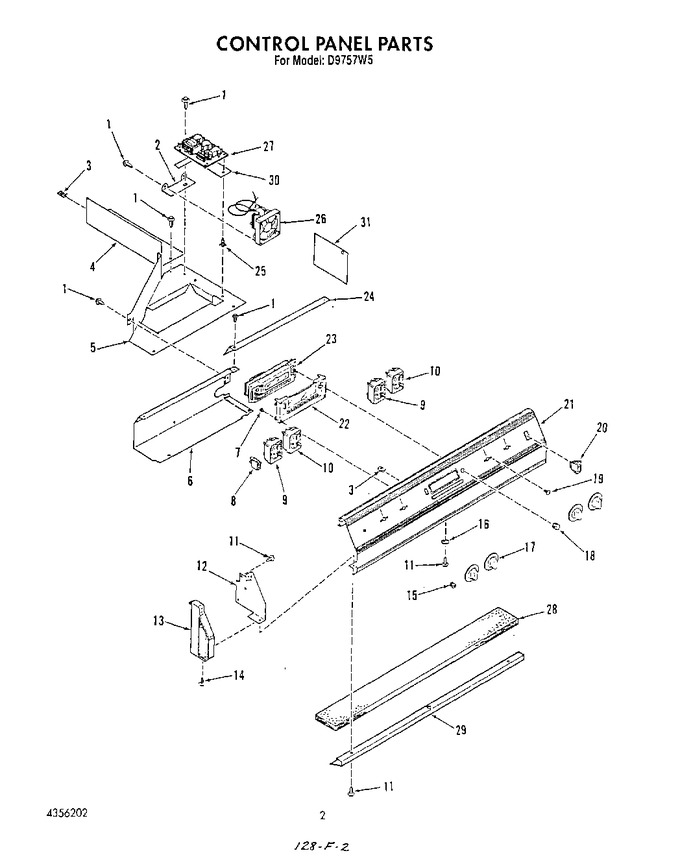

02 - Control Panel , Lit/optional


03 - Oven


04 - Door Lock


05 - Oven Door


06 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
2	4338067		Bracket, Fan		Appelez-nous	-
3	4324015		Speed Nut		Appelez-nous	-
4	4338111		Fan Duct		Appelez-nous	-
5	4338112		Lock Cover		Appelez-nous	-
6	4331576		Wire Cover		Appelez-nous	-
7	4323476		Screw, No.6-32 X 5/16		Appelez-nous	-
8	4336634		Light, Indicator		Appelez-nous	-
9	W10900107		Switch, Infinite   (Replaces: 4343033)			Immediately	$ 51.87
10	W10900107		Switch, Infinite   (Replaces: 4343034)			Immediately	$ 51.87
11	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
12	4332176		Mounting Bracket, Control Panel (left)		Appelez-nous	-
12	4332175		Mounting Bracket, Control Panel (right)		Appelez-nous	-
13	4336416		End Cap (right)		Appelez-nous	-
13	4336417		End Cap (left)		Appelez-nous	-
14	WP308685		Screw, No.10 X 1/2   (Replaces: 4323379)			Immediately	$ 7.08
15	WP9750343		Lens, Indicator Light   (Replaces: 4336632)			Immediately	$ 5.40
16	4323206		Washer		Appelez-nous	-
17	4337760		Knob, Infinite		Appelez-nous	-
18	4338513		Knob, Clock		Appelez-nous	-
19	4323479		Screw No.8-32 X 3/16		Appelez-nous	-
20	WP4314961		Switch, Oven Light   (Replaces: 4337275)				$ 84.56
21	4337803		Control Panel		Appelez-nous	-
22	4342950		Clock Lens Asm.				$ 99.57
23	4342969		Clock/oven Control		Appelez-nous	-
24	4338289		Cover, Control		Appelez-nous	-
25	4337387		Spacer		Appelez-nous	-
26	4337779		Fan		Appelez-nous	-
27	4338265		Relay, Circuit Board		Appelez-nous	-
28	4338352		Insulation		Appelez-nous	-
29	4338382		Shield, Panel		Appelez-nous	-
30	4338601		Insulator, Relay		Appelez-nous	-
31	4338517		Shield, Louver		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
