01 - Cover Sheet

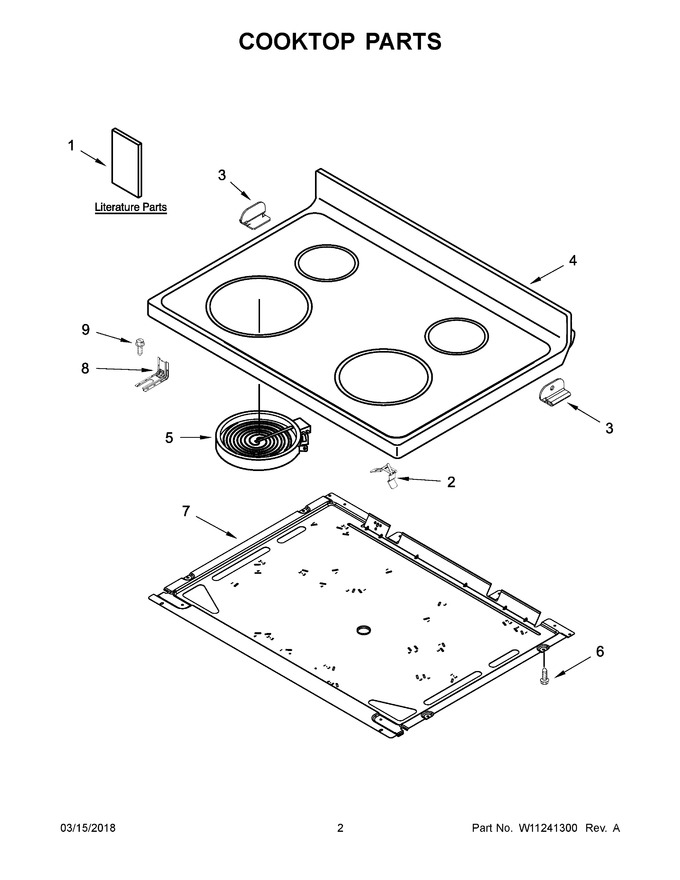

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11157404 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 4 | W11178791 | Cooktop (black) (Replaces: W11034830) |
|
Immediately | $ 502.59 | ||||
| 5 | W11517959 | Element (3000/1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 9 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 1A | W11102909 | Use And Care Guide |
|
- | |||||
| 1B | W11102747 | Sheet, Tech |
|
- | |||||
| 1C | W11102743 | Diagram, Wiring |
|
- | |||||
| 3A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| 5A | W11171119 | Element (1200w) (left Rear, Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5B | W11047722 | Element (2500w) (right Front) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| NI | W11596058 | Harness, Cooktop (right) (Replaces: W10848522) |
|
Immediately | $ 34.76 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11616885 | Harness, Wire (main) (Replaces: W10842603) |
|
- | |||||
| NI | W11675846 | Harness, Cooktop (left) (Replaces: W10848523) |
|
Immediately | $ 39.67 |
