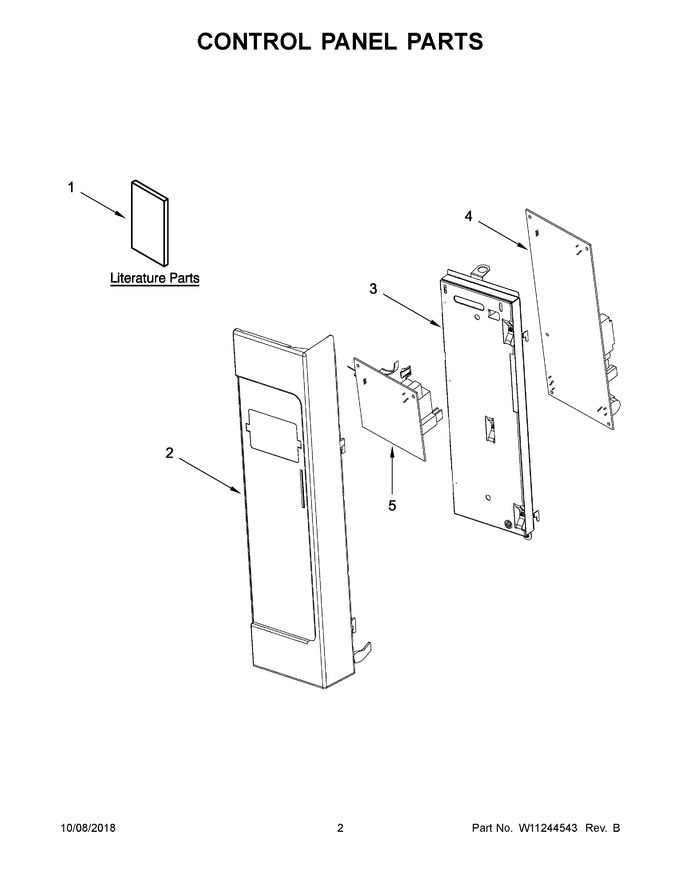

02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10823835		Installation Instructions		Appelez-nous	-
2	W11031962		Assembly, Control Panel (white)				$ 360.02
3	W10771573		Backer, Control Panel				$ 78.23
4	W11256464		Pcba, Appliance Control Unit   (Replaces: W11031903)				$ 180.45
5	W11256465		Pcba, User Interface   (Replaces: W11044689)			Immediately	$ 176.20
1A	W10841421		Use And Care Guide		Appelez-nous	-
1B	W10666960		Guide, Quick Reference		Appelez-nous	-
1C	W11178994		Tech Sheet		Appelez-nous	-
2A	W11031964		Assembly, Control Panel (black)				$ 360.13
2B	W11034219		Assembly, Control Panel (stainless)   (Replaces: W10865173)				$ 337.20
