01 - Cover Sheet

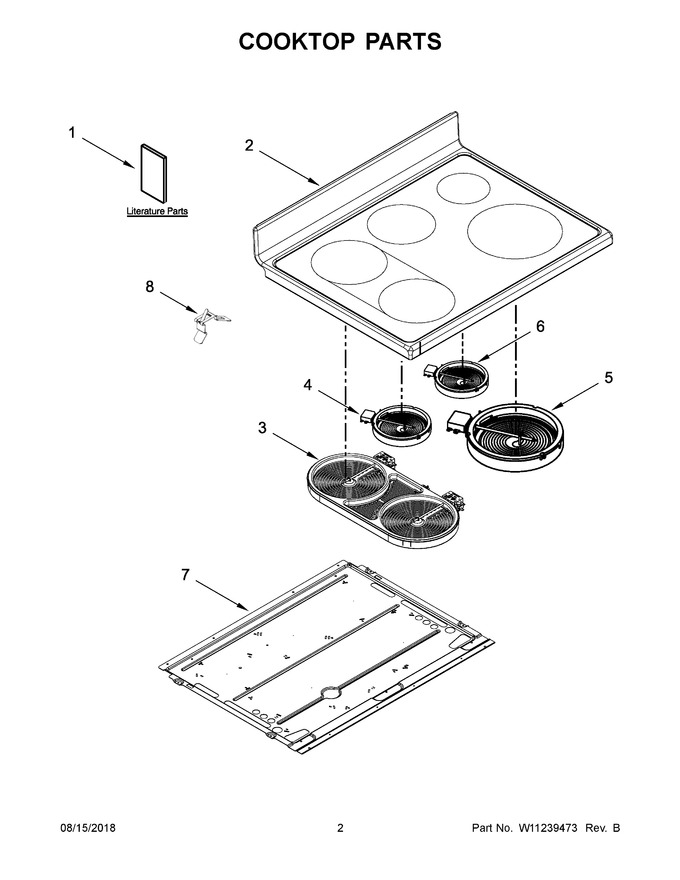

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10430958		Instructions, Installation		Appelez-nous	-
2	W11132188		Cooktop (black)   (Replaces: W10902186)				$ 571.98
3	WPW10248259		Element, Bridge (left Front & Left Rear)   (Replaces: W10248259)			Immediately	$ 374.15
4	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 341.96
6	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 225.62
7	WPW10260946		Panel, Element Support   (Replaces: W10260946)				$ 135.10
8	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
1A	W10912994		Guide, Use & Care		Appelez-nous	-
1B	W10647745		Sheet, Tech		Appelez-nous	-
1C	W10912999		Diagram, Electric Wire		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
NI	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 7.55
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11190469		Harness, Main				$ 247.17
NI	W11217845		Harness, Infinite Switch (left)				$ 201.89
NI	W11217848		Harness, Infinite Switch (right)				$ 200.12
NI	W11190467		Harness, Cooktop				$ 243.89
NI	W11172531		Harness, Sensor & Locks				$ 119.20
NI	W11172428		Harness, Eol (dofsr)		Appelez-nous	-
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 5.07
NI	8019P013-60		Clip, Wire Lock				$ 15.70
NI	WPW10281322		Block, Bare Wire Adapter   (Replaces: 7401P157-60)				$ 8.87
NI	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 110.55
NI	8019P026-60		Clip, Wire-wrap Nylon		Appelez-nous	-
