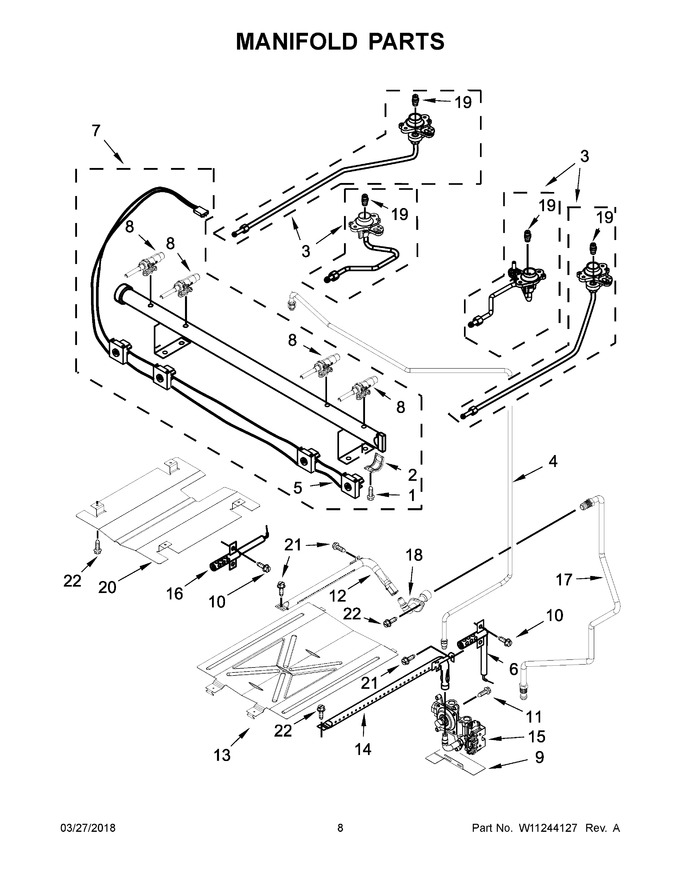

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
3	W11157537		Assembly, Orifice Holder (left Front)				$ 118.41
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 159.35
5	W11256561		Harness, Switch   (Replaces: W10812380)				$ 190.30
6	WP9758079		Electrode, Bake   (Replaces: 9758079)			Immediately	$ 41.01
7	W10812382		Assembly, Manifold				$ 373.83
8	WPW10279615		Valve, Gas (left Front And Right Front)   (Replaces: W10279615)				$ 258.91
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	WP8054078		Burner, Broiler   (Replaces: 8054078)				$ 239.36
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	WPW10602001		Regulator   (Replaces: W10602001)				$ 340.97
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10420040		Tube, Broiler Supply				$ 194.54
18	W10592836		Fitting, Broiler				$ 108.26
19	WPW10170509		Orifice, Natural (14.2k) (left Front And Right Front)   (Replaces: W10170509)				$ 103.60
20	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
21	3196265		Screw		Appelez-nous	-
22	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
19A	WPW10170508		Orifice, Natural (9.5k) (left Rear)   (Replaces: W10170508)				$ 95.21
19B	WPW10170506		Orifice, Natural (5k) (right Rear)   (Replaces: W10170506)				$ 97.85
3A	W10473929		Assembly, Orifice Holder (left Rear)				$ 83.40
3B	W11157536		Assembly, Orifice Holder (right Front)				$ 114.41
3C	W10474163		Assembly, Orifice Holder (right Rear)				$ 82.87
8A	WPW10279614		Valve, Gas (left Rear)   (Replaces: W10279614)				$ 279.81
8B	WPW10247744		Valve, Gas (right Rear)   (Replaces: W10247744)				$ 280.12
NI	W11126051		Kit, Lp Bake And Broil   (Replaces: W10566537)				$ 129.04
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 94.32
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10170534		Kit, Lp Conversion   (Replaces: W10170534)				$ 110.89

    View Diagram in Separate Window       Print Part List
