SELECT A DIAGRAM

01 - Cover Sheet

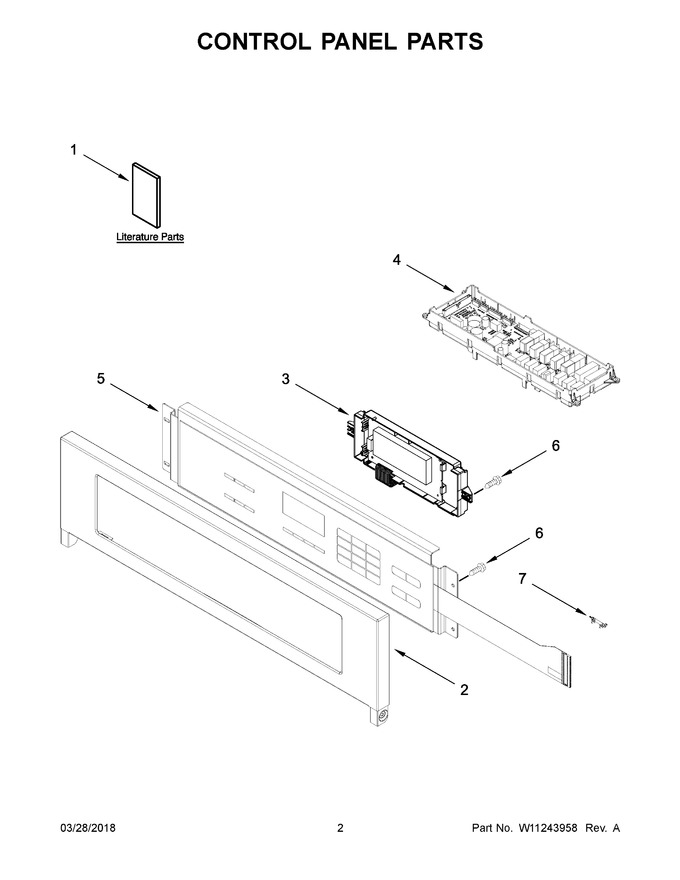

02 - Control Panel Parts


03 - Oven Parts


04 - Top Venting Parts


05 - Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10692590		Guide, Use & Care		Appelez-nous	-
2	W10702189		Assembly, Control Panel Skin (black)		Appelez-nous	-
3	WPW10752316		Interface (maxwell), User Board   (Replaces: W10752316)			Immediately	$ 423.85
4	W10807576		Control   (Replaces: W10721214)				$ 442.70
5	W10695003		Assembly, Membrane (black)		Appelez-nous	-
6	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 7.55
7	W11025102		Fuse, Thermal   (Replaces: W10794084)			Immediately	$ 20.15
1A	W10758285		Instructions, Installation		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10776932		Sheet, Tech		Appelez-nous	-
1D	W10767151		Diagram, Wiring		Appelez-nous	-
2A	W10704698		Assembly, Control Panel Skin (white)		Appelez-nous	-
2B	W10704699		Assembly, Control Panel Skin (stainless)				$ 416.34
5A	W10695004		Assembly, Membrane (white)		Appelez-nous	-
5B	W10694994		Assembly, Membrane (stainless)		Appelez-nous	-
NI	W11157779		Harness, Main		Appelez-nous	-
NI	W10737896		Harness, Door Latch		Appelez-nous	-
NI	W11177680		Harness, Latch		Appelez-nous	-
NI	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 231.69
NI	4450800		Screw, Grounding				$ 13.47
NI	4448664		Clamp, Conduit				$ 21.41
NI	4451761		Support, Wiring		Appelez-nous	-
NI	WP98997		Clip   (Replaces: 98997)				$ 11.64
NI	WPW10339879		Tie, Cable   (Replaces: 4454842)				$ 8.30
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
