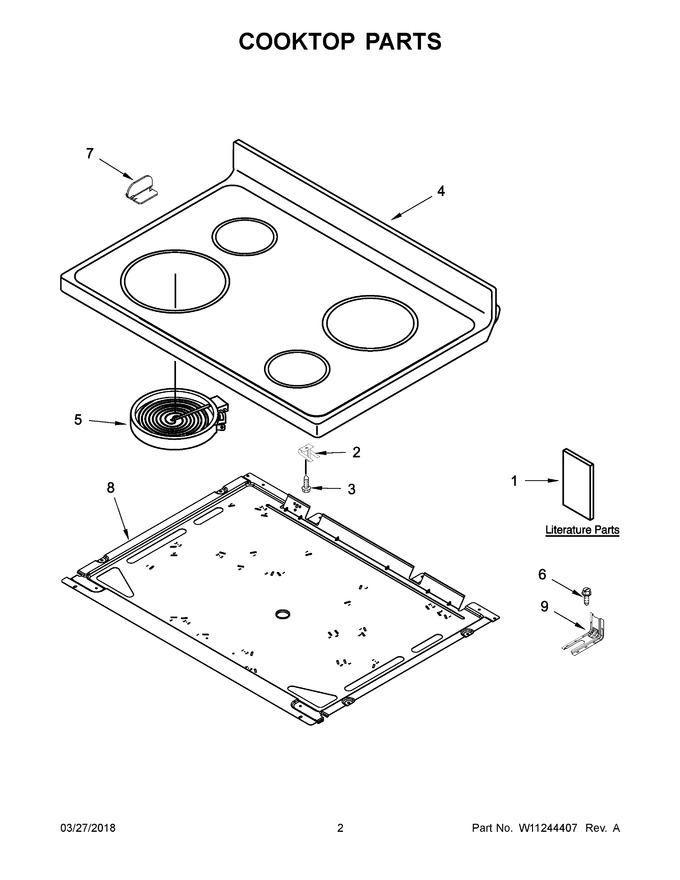

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10720131 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 4 | W10248202 | Cooktop (white) (Replaces: W10202165) |
|
$ 603.76 | |||||
| 5 | WPW10242957 | Element, Surface (2000 Watt (left Front, Right Rear)) (Replaces: W10242957) |
|
$ 332.00 | |||||
| 6 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 7 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 8 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 1A | W11163995 | Use And Care Guide |
|
- | |||||
| 1B | W10384447 | Tech Sheet (english) |
|
- | |||||
| 1C | W10384462 | Tech Sheet (french) |
|
- | |||||
| 5A | WP8523045 | Element, Surface (1500/1700 Watt (left Rear, Right Front)) (Replaces: 8523045) |
|
$ 314.18 | |||||
| 7A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11172424 | Harness, Sensor (Replaces: W10083650) |
|
$ 113.78 | |||||
| NI | W10844299 | Harness, Wire (cooktop Right) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10306365 | Harness, Main |
|
- | |||||
| NI | W10844297 | Harness, Wire (cooktop Left) |
|
- |
