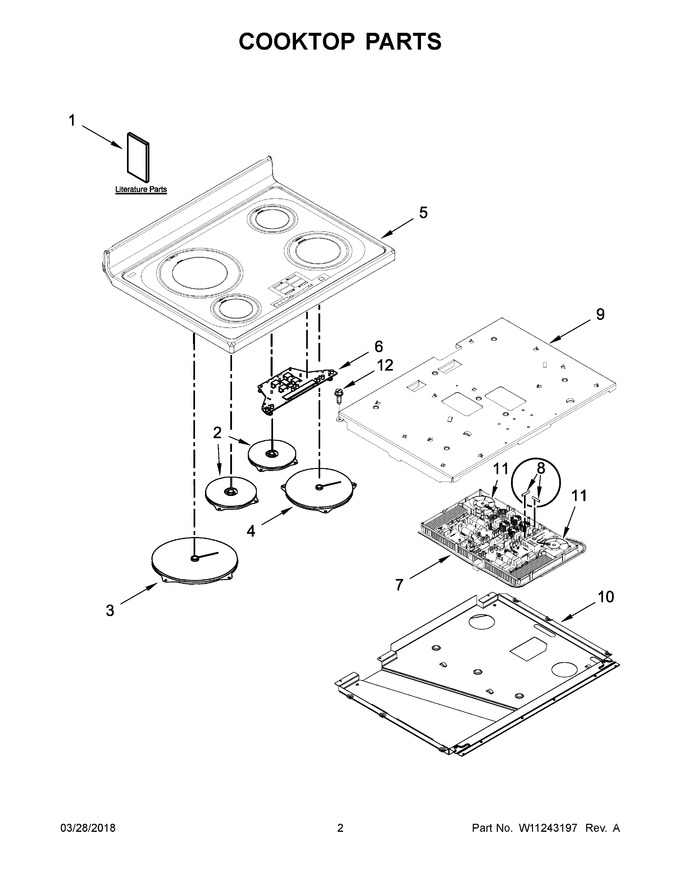

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10694057 | Guide, Use & Care |
|
- | |||||
| 2 | WPW10410580 | Element (left Front & Right Rear) (Replaces: W10410580) |
|
$ 243.67 | |||||
| 3 | WPW10460400 | Hotplate (left Rear) (Replaces: W10460400) |
|
$ 288.16 | |||||
| 4 | WPW10536262 | Hotplate (right Front) (Replaces: W10536262) |
|
$ 241.08 | |||||
| 5 | W10777613 | Cooktop (stainless) (Replaces: W10687992) |
|
$ 681.37 | |||||
| 6 | W10818273 | Control, Ui (Replaces: W10808236) |
|
Immediately | $ 571.68 | ||||
| 7 | W10873518 | Assembly, Induction Module |
|
$ 493.03 | |||||
| 8 | WPW10328492 | Fuse (Replaces: W10328492) |
|
Immediately | $ 102.98 | ||||
| 9 | W10454938 | Plate, Induction |
|
$ 329.66 | |||||
| 10 | W10564364 | Assembly, Induction Pan |
|
$ 329.85 | |||||
| 11 | W10328381 | Fan, Cooling (left) |
|
Immediately | $ 342.86 | ||||
| 12 | 4450800 | Screw, Grounding |
|
$ 12.83 | |||||
| 11A | W10328378 | Fan, Cooling (right) |
|
$ 344.89 | |||||
| 1A | W10694066 | Instructions, Installation |
|
- | |||||
| 1B | W10647745 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| NI | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.19 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11190429 | Harness, Main |
|
$ 426.22 | |||||
| NI | W11172529 | Harness, Signal |
|
Immediately | $ 117.26 | ||||
| NI | W11172531 | Harness, Sensor & Locks |
|
$ 113.52 | |||||
| NI | WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 4.77 | |||||
| NI | 8019P013-60 | Clip, Wire Lock |
|
$ 14.95 | |||||
| NI | W11243763 | Board, Transient Suppressor (Replaces: W10590933) |
|
$ 199.85 | |||||
| NI | 8019P026-60 | Clip, Wire-wrap Nylon |
|
- |
