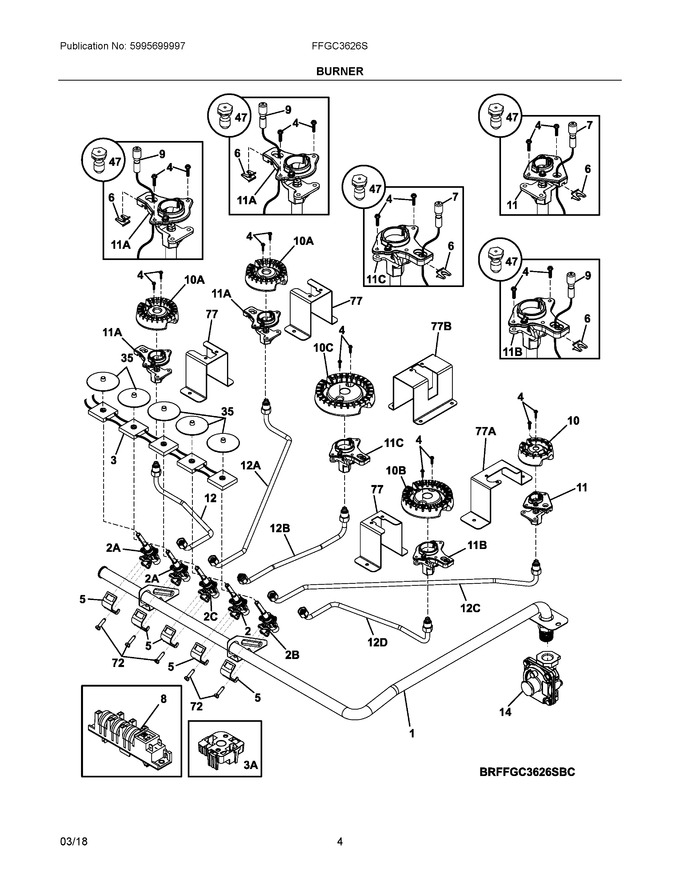

03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505689 | Manifold, Tube, 36", 5 Valve |
|
- | |||||
| 2 | 5304505693 | Valve, Saddle, 680 Btu, Orange Stem |
|
$ 89.83 | |||||
| 3 | 305595107 | Switch Assembly, Ignitor, W/harness |
|
$ 107.86 | |||||
| 4 | 316240600 | Screw, Hex Wash, 6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 13.48 | ||||
| 5 | 357733402 | Bracket, Valve Fixing |
|
$ 10.73 | |||||
| 6 | 5304538490 | Spring Clip, Ignitor (Replaces: 5304516455) |
|
$ 4.53 | |||||
| 7 | 5304516453 | Ignitor, Top Burner, 380mm, W/wiring |
|
$ 22.25 | |||||
| 8 | 5304537114 | Module, Spark, 6 Outputs (Replaces: 5304505696) |
|
Immediately | $ 53.20 | ||||
| 9 | 5304516454 | Ignitor, Top Burner, 520mm, W/wiring |
|
$ 24.94 | |||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 63.00 | ||||
| 11 | 5304516449 | Holder, Orifice/ignitor, 5k, W/nat Orifice |
|
$ 48.88 | |||||
| 12 | 5304498881 | Tube, Burner, Lh Front |
|
- | |||||
| 14 | 5304519943 | Regulator, Pressure (Replaces: 318122727) |
|
$ 144.37 | |||||
| 35 | 807164301 | Bushing, Insulating |
|
- | |||||
| 47 | 5304504841 | Lp Kit, Gas Conversion |
|
- | |||||
| 72 | 305517500 | Screw, Hex Zc, M4 X 16, (8) |
|
$ 7.58 | |||||
| 77 | 5304498799 | Bracket, Ignitor/orifice, Mounting |
|
$ 20.48 | |||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 58.28 | ||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
$ 88.67 | |||||
| 10C | 316438400 | Burner, Sealed, 18.2k |
|
Immediately | $ 92.69 | ||||
| 11A | 5304516450 | Holder, Orifice/ignitor, 9.5k, W/nat Orifice |
|
Immediately | $ 48.88 | ||||
| 11B | 5304516451 | Holder, Orifice/ignitor, 12k, W/nat Orifice |
|
$ 54.06 | |||||
| 11C | 5304516452 | Holder, Orifice/ignitor, 14k, W/nat Orifice |
|
$ 60.17 | |||||
| 12A | 5304498882 | Tube, Burner, Lh Rear |
|
- | |||||
| 12B | 5304498883 | Tube, Burner, Center |
|
- | |||||
| 12C | 5304498884 | Tube, Burner, Rh Front |
|
- | |||||
| 12D | 5304498885 | Tube, Burner, Rh Rear |
|
- | |||||
| 2A | 5304505690 | Valve, Saddle, 850 Btu, Green Stem |
|
Immediately | $ 77.52 | ||||
| 2B | 5304505691 | Valve, Saddle, 1125 Btu, Blue Stem |
|
Immediately | $ 76.68 | ||||
| 2C | 5304505692 | Valve, Saddle, 1800 Btu, Red Stem |
|
$ 79.21 | |||||
| 3A | 5304505694 | Adapter, Switch Mtg. |
|
$ 17.69 | |||||
| 77A | 5304498800 | Bracket, Ignitor/orifice, 5k Burner, Mounting |
|
- | |||||
| 77B | 5304498888 | Bracket, Ignitor/orifice, Center Burner, Mounting |
|
$ 22.05 | |||||
| NI | 305338602 | Screw |
|
- | |||||
| NI | 305309701 | Screw, Phil, 4.2 X 6.5, (20) |
|
$ 6.30 | |||||
| NIA | 5304516456 | Wire, Grounding |
|
- |
