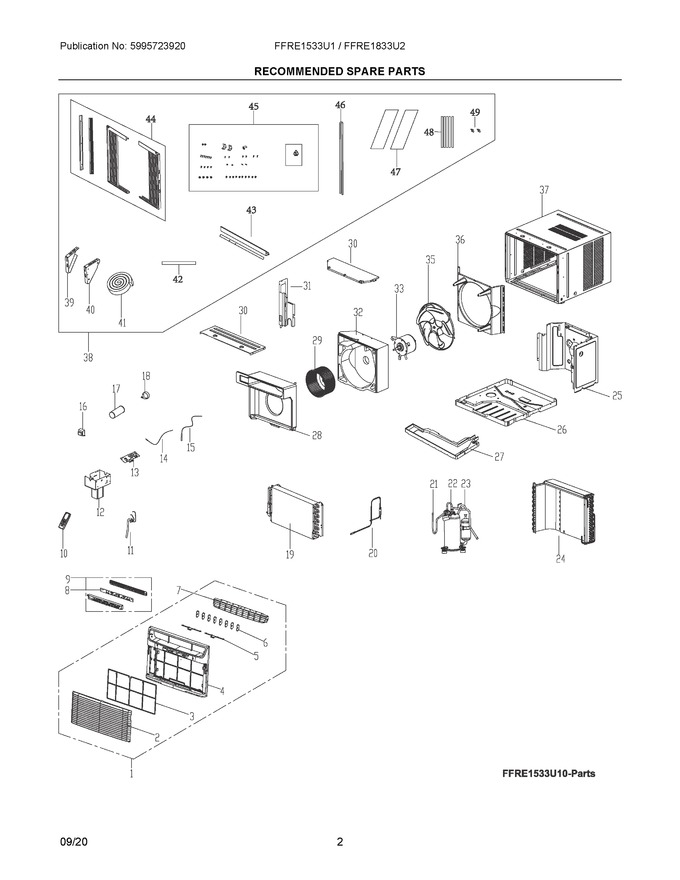

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304516311 | Front Panel, Assembly, Complete |
|
- | |||||
| 2 | 5304516312 | Grille, Air Intake |
|
- | |||||
| 3 | 5304516313 | Filter, Air |
|
- | |||||
| 4 | 5304516314 | Frame, Front |
|
- | |||||
| 5 | 5304516315 | Lever, Air Louver, (2) |
|
- | |||||
| 6 | 5304515942 | Louver, Vertical |
|
- | |||||
| 7 | 5304516316 | Louvre, Horizontal |
|
- | |||||
| 8 | 5304516317 | Control Board, Display |
|
- | |||||
| 9 | 5304516318 | Control Panel, Assembly, W/board |
|
- | |||||
| 10 | 5304515943 | Remote Control |
|
$ 114.22 | |||||
| 11 | 5304516319 | Power Cord, Assembly |
|
- | |||||
| 12 | 5304516320 | Box Assembly, Electrical |
|
- | |||||
| 13 | 5304516321 | Pc Board, Main |
|
- | |||||
| 14 | 5304459746 | Thermistor, Discharge, High Heat |
|
- | |||||
| 15 | 5304459793 | Sensor, Ambient, Indoor, Evap Defrost |
|
$ 69.60 | |||||
| 16 | 5304516322 | Transformer |
|
- | |||||
| 17 | 5304516323 | Capacitor, Cbb65 |
|
- | |||||
| 18 | 5304459182 | Strap, Capacitor Clamp |
|
- | |||||
| 19 | 5304516324 | Evaporator, Assembly |
|
- | |||||
| 20 | 5304516325 | Tube Assembly, Capilary |
|
- | |||||
| 21 | 5304516326 | Tube, Discharge |
|
- | |||||
| 22 | 5304516328 | Compressor |
|
- | |||||
| 23 | 5304516329 | Tube, Suction |
|
- | |||||
| 24 | 5304516330 | Condenser, Assembly |
|
- | |||||
| 25 | 5304516332 | Bracket, Clapboard |
|
- | |||||
| 26 | 5304516363 | Base Assembly, Chassis |
|
- | |||||
| 27 | 5304516334 | Tray, Drip |
|
- | |||||
| 28 | 5304516335 | Air Duct, Front |
|
- | |||||
| 29 | 5304516336 | Wheel, Blower |
|
- | |||||
| 30 | 5304516337 | Cover, Top, Frnt & Rear |
|
- | |||||
| 31 | 5304516338 | Bracket, Clapboard, Side |
|
- | |||||
| 32 | 5304516339 | Air Duct, Volute, Rear |
|
- | |||||
| 33 | 5304516340 | Motor, Fan |
|
- | |||||
| 35 | 5304516341 | Blade, Condenser Fan |
|
- | |||||
| 36 | 5304516342 | Shroud, Condenser Fan |
|
- | |||||
| 37 | 5304516343 | Outer Cabinet, Assembly |
|
- | |||||
| 38 | 5304516344 | Installation Kit, Window Mtg, Complete |
|
- | |||||
| 39 | 5304516345 | Bracket, Cabinet, Rh |
|
- | |||||
| 40 | 5304516346 | Bracket, Cabinet, Lh |
|
- | |||||
| 41 | 5304459559 | Seal, Sash, Window Stuffer |
|
- | |||||
| 42 | 5304516347 | Ruler |
|
- | |||||
| 43 | 5304516348 | Rail, Top |
|
- | |||||
| 44 | 5304516349 | Filler Kit, Window Panel |
|
- | |||||
| 45 | 5304516350 | Hardware Kit, Installation |
|
- | |||||
| 46 | 5304459560 | Seal, Bottom Rail, Cab/chassis |
|
- | |||||
| 47 | 5304516351 | Insulation Panel, Heat |
|
- | |||||
| 48 | 5304516008 | Seal Kit, Foam, Sash Filler |
|
- | |||||
| 49 | 5304516369 | Safety Lock, L-shape Bracket, (2) |
|
- |
