SELECT A DIAGRAM
01 - Cover Sheet

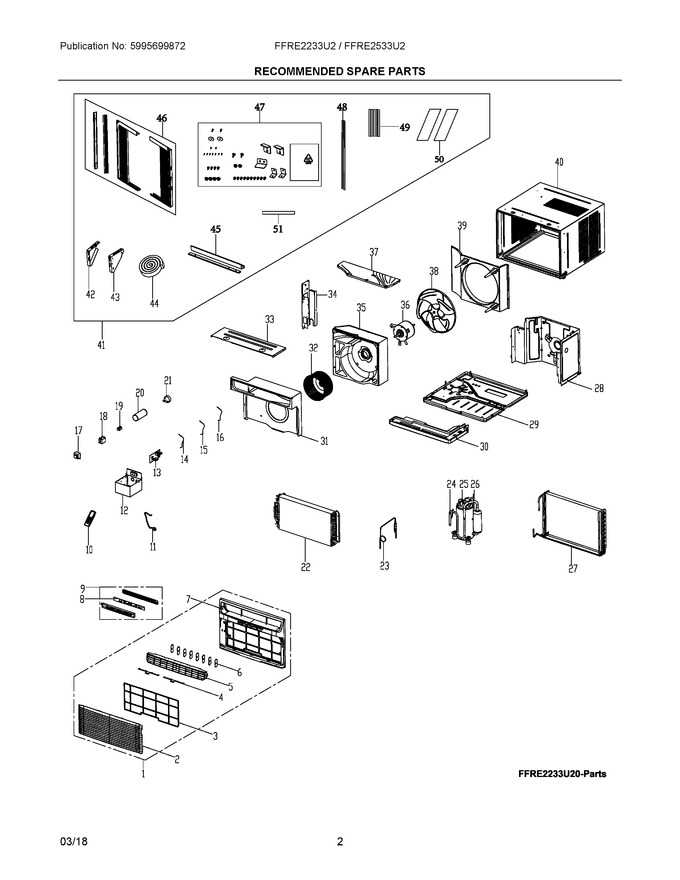

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304516394 | Front Panel, Assembly, Complete |
|
- | |||||
| 2 | 5304516395 | Grille, Air Intake |
|
- | |||||
| 3 | 5304516396 | Filter, Air |
|
- | |||||
| 4 | 5304516397 | Lever, Air Louver, (2) |
|
- | |||||
| 5 | 5304516398 | Louvre, Horizontal |
|
- | |||||
| 6 | 5304516399 | Louvre, Vertical |
|
- | |||||
| 7 | 5304516400 | Frame, Front |
|
- | |||||
| 8 | 5304516317 | Control Board, Display |
|
- | |||||
| 9 | 5304516318 | Control Panel, Assembly, W/board |
|
- | |||||
| 10 | 5304515943 | Remote Control |
|
$ 114.22 | |||||
| 11 | 5304516354 | Power Cord, Assembly |
|
- | |||||
| 12 | 5304516401 | Box, Electrical |
|
- | |||||
| 13 | 5304516402 | Board Assembly, Main |
|
$ 233.51 | |||||
| 14 | 5304459746 | Thermistor, Discharge, High Heat |
|
- | |||||
| 15 | 5304516403 | Thermister, Temp Sensor, Condenser |
|
- | |||||
| 16 | 5304516404 | Thermister, Temp Sensor, Evaporator |
|
$ 37.59 | |||||
| 17 | 5304502544 | Transformer |
|
- | |||||
| 18 | 5304510697 | Relay |
|
- | |||||
| 19 | 5304459674 | Terminal, Electric, Board 2-8 |
|
- | |||||
| 20 | 5304516405 | Capacitor, Cbb65 |
|
- | |||||
| 21 | 5304459183 | Strap, Capacitor Clamp |
|
- | |||||
| 22 | 5304516406 | Evaporator, Assembly |
|
- | |||||
| 23 | 5304516407 | Tube Assembly, Cappilary |
|
- | |||||
| 24 | 5304516408 | Tube, Suction |
|
- | |||||
| 25 | 5304516409 | Compressor |
|
- | |||||
| 26 | 5304516410 | Tube, Discharge |
|
- | |||||
| 27 | 5304516411 | Condenser, Assembly |
|
- | |||||
| 28 | 5304516412 | Bracket, Clapboard |
|
- | |||||
| 29 | 5304516413 | Base Assembly, Chassis |
|
$ 192.07 | |||||
| 30 | 5304516414 | Tray, Drip |
|
- | |||||
| 31 | 5304516415 | Air Duct, Front |
|
- | |||||
| 32 | 5304516336 | Wheel, Blower |
|
- | |||||
| 33 | 5304516416 | Cover, Front, Top |
|
- | |||||
| 34 | 5304516417 | Bracket, Clapboard, Side |
|
- | |||||
| 35 | 5304516418 | Air Duct, Volute, Rear |
|
- | |||||
| 36 | 5304516419 | Motor, Fan |
|
- | |||||
| 37 | 5304459571 | Cover, Condenser/fan, Top |
|
- | |||||
| 38 | 5304516341 | Blade, Condenser Fan |
|
- | |||||
| 39 | 5304516420 | Shroud, Condenser Fan |
|
- | |||||
| 40 | 5304516421 | Cabinet Assembly, Wrapper |
|
- | |||||
| 41 | 5304516422 | Installation Kit, Window Mtg, Complete |
|
- | |||||
| 42 | 5304516345 | Bracket, Cabinet, Rh |
|
- | |||||
| 43 | 5304516346 | Bracket, Cabinet, Lh |
|
- | |||||
| 44 | 5304459559 | Seal, Sash, Window Stuffer |
|
- | |||||
| 45 | 5304516423 | Rail, Top |
|
- | |||||
| 46 | 5304516424 | Window Filler Kit, Slider Panels |
|
- | |||||
| 47 | 5304516425 | Hardware Kit, Installation |
|
- | |||||
| 48 | 5304459560 | Seal, Bottom Rail, Cab/chassis |
|
- | |||||
| 49 | 5304516426 | Seal Kit, Foam, Sash Filler |
|
- | |||||
| 50 | 5304516427 | Insulation Panel, Heat |
|
- | |||||
| 51 | 5304516347 | Ruler |
|
- |
