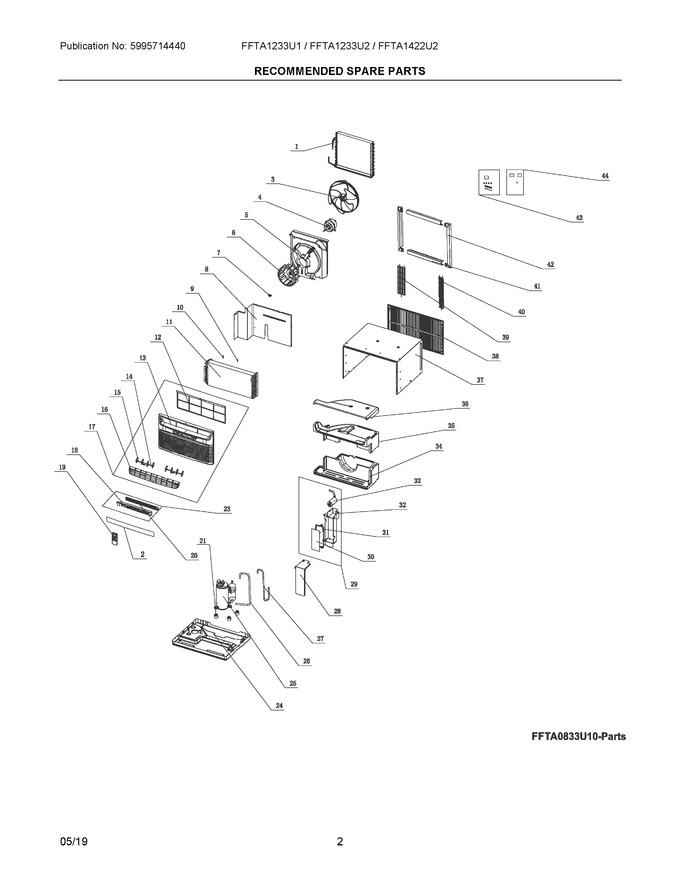

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304516567 | Condenser, Assembly |
|
- | |||||
| 2 | 5304521645 | Overlay, Control |
|
- | |||||
| 3 | 5304516523 | Fan Blade, Condenser |
|
- | |||||
| 4 | 5304516568 | Motor, Fan |
|
- | |||||
| 5 | 5304516525 | Shroud, Condenser Fan |
|
- | |||||
| 6 | 5304516526 | Wheel, Blower |
|
- | |||||
| 7 | 5304510607 | Clamp, Plastic, (2) |
|
- | |||||
| 8 | 5304516527 | Bracket, Clapboard |
|
- | |||||
| 9 | 5304516529 | Clip, Temp Sensor |
|
$ 10.44 | |||||
| 10 | 5304502229 | Sleeve, Temp Sensor |
|
- | |||||
| 11 | 5304516574 | Evaporator, Assembly |
|
- | |||||
| 12 | 5304516531 | Filter, Air |
|
- | |||||
| 13 | 5304516532 | Frame, Front |
|
- | |||||
| 14 | 5304516533 | Lever, Air Louver |
|
- | |||||
| 15 | 5304515942 | Louver, Vertical |
|
- | |||||
| 16 | 5304516534 | Louver, Horizontal |
|
- | |||||
| 17 | 5304516535 | Front Assembly, Complete |
|
- | |||||
| 18 | 5304516536 | Display Assembly, W/control Box |
|
- | |||||
| 19 | 5304515943 | Remote Control |
|
$ 114.22 | |||||
| 20 | 5304516538 | Cover, Display Assy |
|
- | |||||
| 21 | 5304516558 | Gasket, Compressor |
|
- | |||||
| 23 | 5304516584 | Control Panel, Assembly, Complete |
|
$ 124.46 | |||||
| 24 | 5304516591 | Base Assembly, Chassis |
|
- | |||||
| 25 | 5304516569 | Compressor, W/overload |
|
- | |||||
| 26 | 5304516578 | Tube, Discharge |
|
- | |||||
| 27 | 5304516570 | Tube, Suction |
|
- | |||||
| 28 | 5304516545 | Cover, Electrical Box |
|
- | |||||
| 29 | 5304516597 | Box Assembly, Electrical, W/board-capactr |
|
- | |||||
| 30 | 5304516587 | Board Assembly, Main |
|
- | |||||
| 31 | 5304516547 | Bracket, Board Mtg |
|
- | |||||
| 32 | 5304516588 | Box, Electrical |
|
- | |||||
| 33 | 5304516565 | Capacitor, Cbb65 |
|
$ 39.04 | |||||
| 34 | 5304516551 | Air Duct, Volute, Bottom |
|
- | |||||
| 35 | 5304516552 | Air Duct, Volute, Middle |
|
- | |||||
| 36 | 5304516589 | Air Duct, Volute, Top |
|
- | |||||
| 37 | 5304516554 | Wrapper Assembly, Cabinet |
|
- | |||||
| 38 | 5304516555 | Grille, Air Directional, Rear |
|
- | |||||
| 39 | 5304516556 | Grille, Protective, Wide, Rear |
|
- | |||||
| 40 | 5304467092 | Grille, Protective, Narrow, Rear |
|
$ 16.07 | |||||
| 41 | 5304459821 | Trim, Cabinet Frame, Top/bottom |
|
$ 45.09 | |||||
| 42 | 5304459820 | Trim, Cabinet Frame, Side |
|
$ 44.69 | |||||
| 43 | 5304459817 | Fastener Kit, Screws, Washers |
|
- | |||||
| 44 | 5304459818 | Grounding Kit |
|
- |
