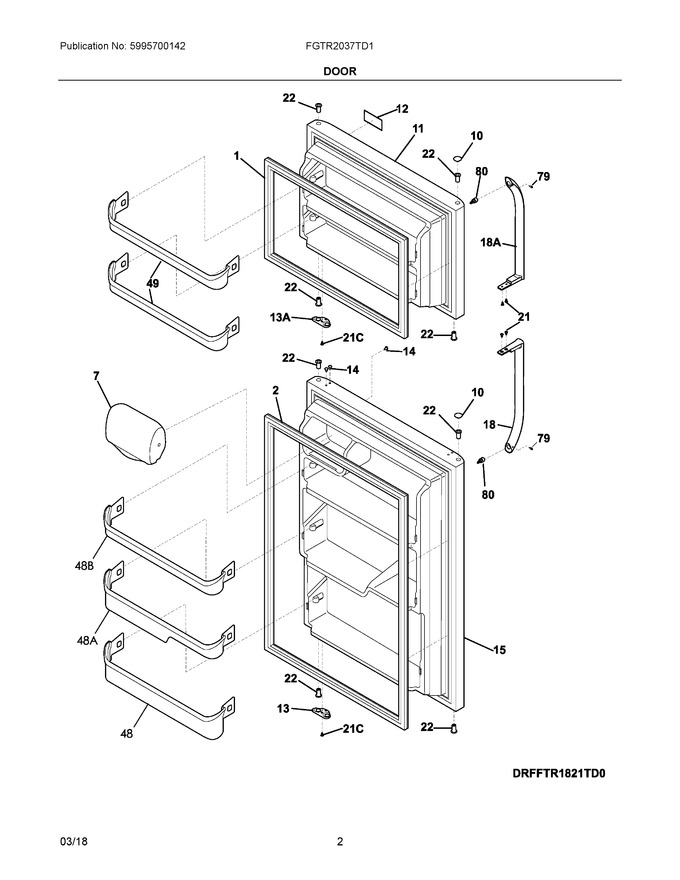

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193211		Gasket-frzr Door, Black, Magnetic				$ 207.90
2	242193214		Gasket-refr Door, Black, Magnetic				$ 212.06
7	240337712		Door-dairy, W/o Graphics, Clear   (Replaces: 240337703)			Immediately	$ 40.45
10	240381303		Plug-button, Black, Hinge Brg Hole				$ 77.52
11	807460042		Freezer Door, Complete, Black Stainless				$ 252.42
12	5304510904		Nameplate, Black Stainless				$ 60.67
13	240312422		Door Stop, Black, Ref				$ 16.85
14	240494003		Plug-button, Black				$ 20.22
15	807460162		Refrigerator Door, Complete, Black Stainless				$ 553.94
18	241977509		Handle, Door, Black Stainless, Ref Rhs, W/set Screw				$ 241.76
21	240383407		Screw, Truss Hd Quad, 10 X 16, Black   (Replaces: 240383408)				$ 14.18
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 8.43
48	240338101		Bin-door			Immediately	$ 58.19
49	240495805		Bin-door, Pseudo, Frzr				$ 56.60
58	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 16.85
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 22.84
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
13A	240312415		Door Stop, Black, Frzr				$ 23.63
18A	241977510		Handle, Door, Black Stainless, Frz Rhs, W/set Screw				$ 241.76
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
48A	240337901		Bin-door			Immediately	$ 57.92
48B	240338001		Bin-door			Immediately	$ 38.84
NIA	241601001		Wrench, Allen		Appelez-nous	-
