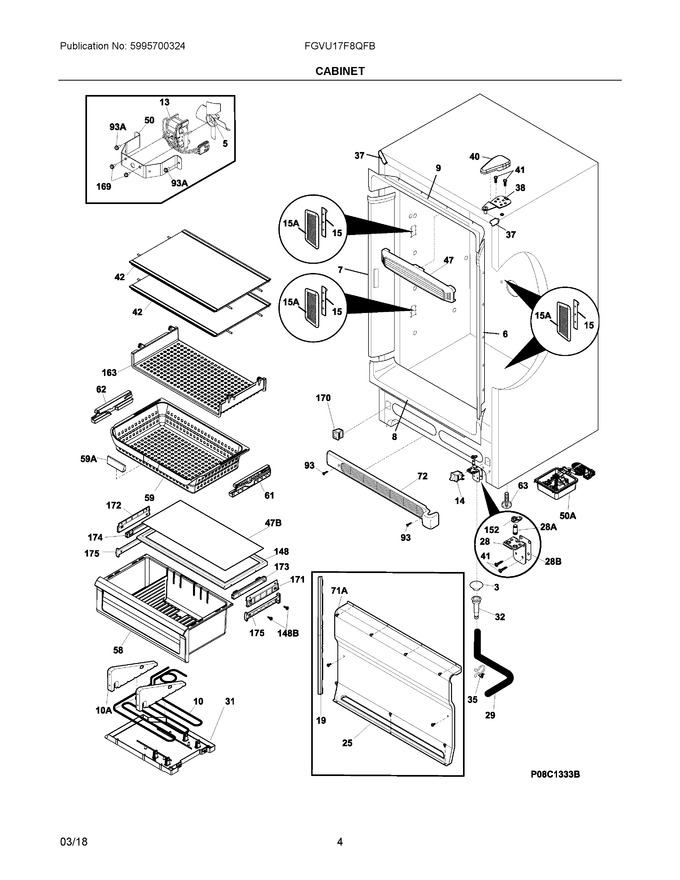

01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 69.08 | |||||
| 5 | 297437300 | Fan Blade |
|
$ 7.46 | |||||
| 6 | 297435601 | Breaker |
|
$ 50.35 | |||||
| 7 | 297435600 | Breaker, W/lock |
|
$ 43.94 | |||||
| 8 | 297403902 | Breaker, Bottom |
|
$ 67.58 | |||||
| 9 | 297403901 | Breaker, Top |
|
$ 61.58 | |||||
| 10 | 297334500 | Heater-drain Pan |
|
$ 72.30 | |||||
| 13 | 297309000 | Fan Motor Evap 115v |
|
Immediately | $ 72.84 | ||||
| 14 | 216822900 | Switch, Light/lamp, Ramp (Replaces: 216822901) |
|
Immediately | $ 77.96 | ||||
| 15 | 242196204 | Light Board, 3 Led Cluster |
|
Immediately | $ 73.35 | ||||
| 19 | 216204902 | Gasket-evap Cover |
|
Immediately | $ 39.71 | ||||
| 25 | 297099251 | Cover-evaporator |
|
$ 109.93 | |||||
| 26 | 297415900 | Ramp, Door Closer |
|
Immediately | $ 27.49 | ||||
| 28 | 297416301 | Hinge, Reversible, Bottom Rh |
|
$ 16.87 | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 17.67 | ||||
| 31 | 297165802 | Pan-drain |
|
$ 55.86 | |||||
| 32 | 5304511843 | Drain (Replaces: 297382000) |
|
$ 15.27 | |||||
| 35 | 216273000 | Clip, Wire Retainer |
|
$ 24.91 | |||||
| 37 | 297273903 | Trim-cabinet Corner, Silver Mist, (2) |
|
- | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297283800) |
|
Immediately | $ 21.69 | ||||
| 40 | 297164405 | Cover-hinge, Grey |
|
$ 26.19 | |||||
| 41 | 240578902 | Screw, Hex Head, 1/4-20x5/8, Hinge (Replaces: 297236250) |
|
Immediately | $ 15.75 | ||||
| 42 | 5304497953 | Shelf, Assy |
|
$ 196.09 | |||||
| 47 | 297192903 | Baffle, Air (Replaces: 297192900) |
|
Immediately | $ 28.12 | ||||
| 50 | 216394050 | Bracket, Fan Motor Mount |
|
$ 25.28 | |||||
| 58 | A11791811 | Bin, Crisper, Assy (Replaces: 297295702) |
|
$ 235.02 | |||||
| 59 | 808617902 | Basket (Replaces: 5304493990) |
|
$ 137.66 | |||||
| 61 | 5304493996 | Support, Hanging Basket, Rh |
|
- | |||||
| 62 | 5304493997 | Support, Hanging Basket, Lh |
|
- | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 42.65 | ||||
| 72 | 297387705 | Grille/kickplate, Gray |
|
$ 72.45 | |||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 15.17 | |||||
| 93 | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.94 | ||||
| 148 | 297271701 | Frame-crisper Cover, Lower |
|
$ 194.30 | |||||
| 152 | 5304511026 | Closer, Bearing Hinge (Replaces: 297416000) |
|
Immediately | $ 11.25 | ||||
| 163 | 808617701 | Shelf, Pizza, Hanging |
|
- | |||||
| 169 | 216912401 | Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2) |
|
$ 14.18 | |||||
| 170 | 297280403 | Valve, Breather |
|
$ 24.10 | |||||
| 171 | 297092700 | Bracket, Crisper Cover, Rh |
|
$ 61.51 | |||||
| 172 | 297092701 | Bracket, Crisper Cover, Lh |
|
$ 63.20 | |||||
| 173 | 5304515502 | Slide, Crisper, Rh, W/clips (Replaces: 297291210) |
|
$ 85.95 | |||||
| 174 | 5304515501 | Slide, Crisper, Lh, W/clips (Replaces: 297291211) |
|
Immediately | $ 86.75 | ||||
| 175 | 297099500 | Support, Crisper |
|
Immediately | $ 52.25 | ||||
| 10A | 297177400 | Bracket, (2), Drain Pan |
|
- | |||||
| 148B | 297142600 | Screw, Blunt, 8-32 X 5/8 |
|
$ 14.46 | |||||
| 15A | 242202701 | Lens, 3 Led Cluster |
|
$ 33.86 | |||||
| 28A | 297438300 | Pin, Bottom Hinge |
|
$ 8.03 | |||||
| 28B | 5304497244 | Shim, Bottom Hinge |
|
$ 7.23 | |||||
| 42A | A02289402 | Shelf, Assy, Glass, Lower (Replaces: 5304497876) |
|
$ 49.80 | |||||
| 47B | 297102705 | Glass, Crisper Cover |
|
$ 156.71 | |||||
| 50A | 5304500699 | Board Assembly, Main Control, W/housing |
|
$ 365.11 | |||||
| 59A | 808408301 | Clip, Basket Handle, Blue |
|
$ 21.27 | |||||
| 71A | 297146820 | Screw, 8-18ab X.470 Qx |
|
$ 7.33 | |||||
| 93A | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.37 | |||||
| NI | 30534600 | Clip, Wire (Replaces: 5303313703) |
|
$ 4.21 | |||||
| NI | 5304496283 | Grommet, Shelf Mtg |
|
$ 10.24 | |||||
| NI | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 16.01 | |||||
| NI | 5304498525 | Service Data Sheet |
|
- | |||||
| NI | 5304497974 | Quick Start Guide |
|
- | |||||
| NI | 5304498594 | Label, Energy Guide |
|
- | |||||
| NI | 5304496697 | Cover, Access, Machine Compt. |
|
- | |||||
| NI | 125963-48 | Insulation, 24", Suction Line (Replaces: 297001704) |
|
Immediately | $ 65.73 | ||||
| NIA | 5304494016 | Clip, Basket Handle, Green |
|
$ 11.60 | |||||
| NIA | 216502400 | Grommet-shelf Mtg |
|
$ 18.48 | |||||
| NIA | 5304511026 | Hinge Bearing, Reversible |
|
Immediately | $ 11.25 | ||||
| NIA | 297164650 | Bracket, Lh Leg Levelor |
|
$ 18.43 | |||||
| NIAA | 808408304 | Clip, Basket Handle, Red |
|
$ 23.63 | |||||
| NIB | 5304509705 | Grommet-shelf Mtg (Replaces: 216817700) |
|
$ 11.12 | |||||
| NIB | 5304494017 | Clip, Basket Handle, Yellow |
|
- | |||||
| NIB | 297164651 | Bracket, Rh Leg Levelor |
|
$ 17.51 |
