01 - Cover Sheet

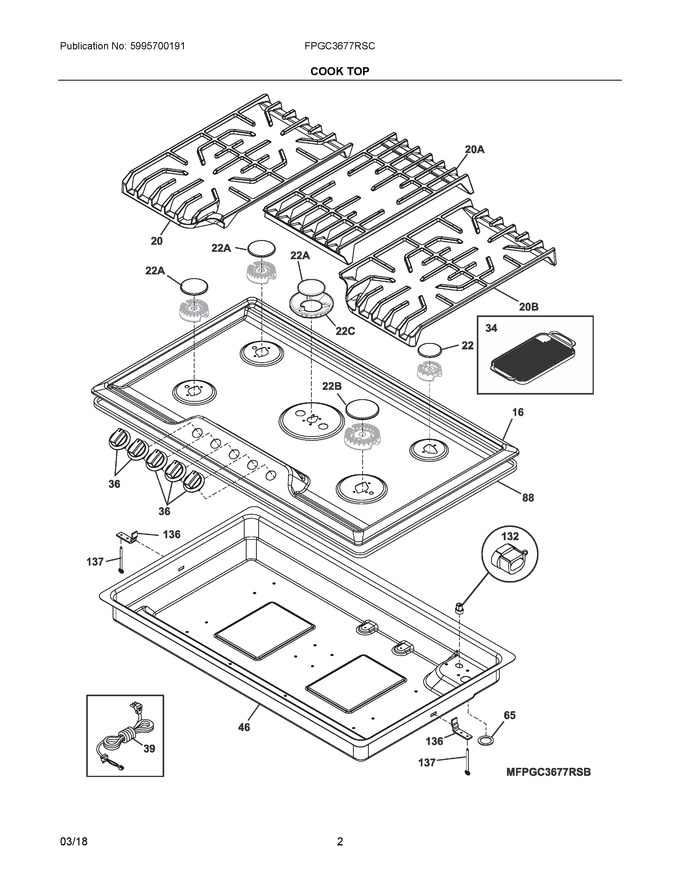

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5304528821		Main Top, Assembly, Stainless   (Replaces: 809218324)				$ 256.11
20	5304507041		Grate, Top Burner, Lh				$ 308.41
22	5304508441		Cap, 5k Burner, Matte, Black			Immediately	$ 38.93
34	5304495353		Griddle			Immediately	$ 185.38
36	5304500250		Knob, Top Valve, Stainless				$ 137.81
39	305574902		Power Cord, Electrical, Supply				$ 77.18
46	5304498877		Burner Box		Appelez-nous	-
65	5304506478		Seal, Rubber				$ 12.60
88	5304534371		Gasket, Main Top, 36   (Replaces: 5304508444)				$ 37.63
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 10.11
136	318264301		Support, Box, (2)				$ 47.72
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 13.55
20A	5304500252		Grate, Top Burner, Center			Immediately	$ 301.61
20B	5304507042		Grate, Top Burner, Rh				$ 274.70
22A	5304508442		Cap, 9.5k Burner, Matte, Black			Immediately	$ 40.61
22B	5304508443		Cap, 14k Burner, Matte, Black			Immediately	$ 51.12
22C	5304519953		Cap, Burner, Black, G5   (Replaces: 139029203)				$ 183.52
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	305338602		Screw		Appelez-nous	-
