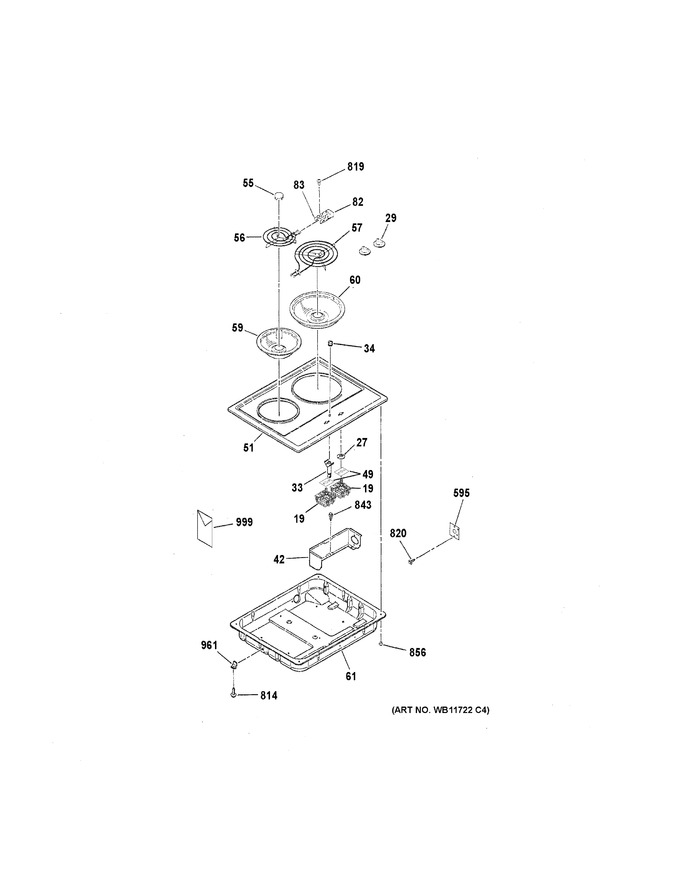

Control Panel & Cooktop
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | WB24X28481 | Infinite Control Switch |
|
- | |||||
| 27 | WB6X3 | Control Seal |
|
- | |||||
| 29 | WB03X10296 | Infinite Knob |
|
- | |||||
| 33 | WB25M3 | Ind Light |
|
- | |||||
| 34 | WB25X10028 | Red Indicator Light Lens |
|
$ 5.07 | |||||
| 42 | WB34K5243 | Control Barrier |
|
- | |||||
| 49 | WB04X10034 | Gasket, Switch |
|
- | |||||
| 51 | WB62K5035 | Main Top-chrome |
|
- | |||||
| 55 | WB32X105 | Medallion |
|
- | |||||
| 56 | WB30X254 | 6" Surface Element |
|
- | |||||
| 57 | WB30X253 | 8" Surface Element |
|
- | |||||
| 59 | WB31M1 | 6" Bowl Burner |
|
- | |||||
| 60 | WB31M2 | 8" Bowl Burner |
|
- | |||||
| 61 | WB64K5028 | Burner Box |
|
- | |||||
| 82 | WB17M11 | Terminal Block Asm |
|
- | |||||
| 83 | WB17X218 | Terminal Block Clip |
|
- | |||||
| 595 | WB2X9666 | Harness Conduit Plate |
|
- | |||||
| 814 | WG02A02482 | Screw Thumb 10-24x2 0" (Replaces: WB01X10080) |
|
$ 20.16 | |||||
| 819 | WB1K5204 | Screw 10-16x3/8 |
|
- | |||||
| 820 | WB1K5203 | Screw 8-18x1/2 |
|
- | |||||
| 843 | WB1X1424D | Screw-pkg 12 |
|
- | |||||
| 856 | WG02F04011 | Screw Tc10-32x.250hexni (Replaces: WB1X1293) |
|
$ 3.57 | |||||
| 961 | WG02A00896 | Clip Retainer (Replaces: WB01X10209) |
|
$ 83.39 | |||||
| 999 | 49-8204 | Use & Care Jp200/201 |
|
- | |||||
| 999 | WB18K5173 | Element Wire Harness |
|
- |
